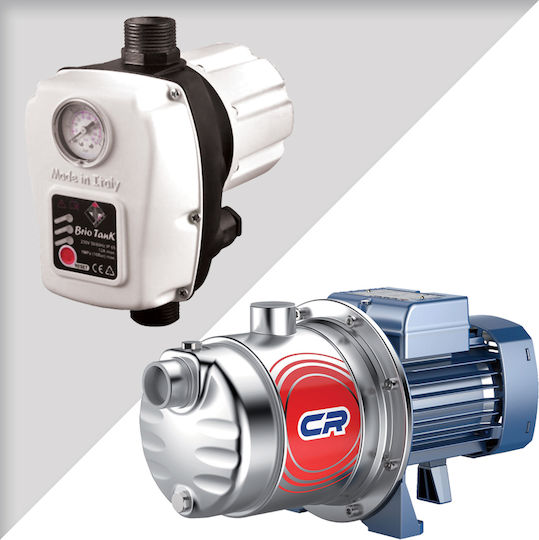

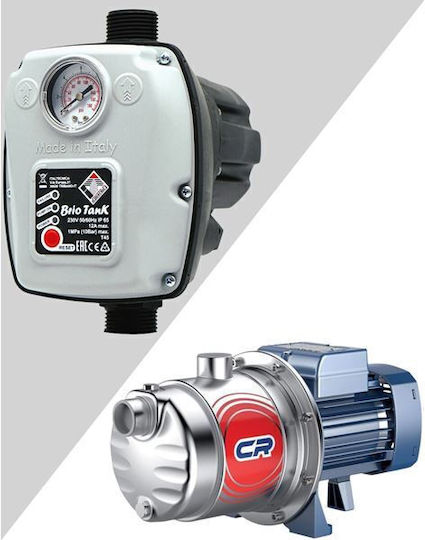

- Pump
- Electronic flow controller
Type: 5CRm 100
Pump Type: Multistage
Power (hp-Watt): 1.50Hp-1100Watt
Voltage (Volt): 220 Volt/50 Hz
Pressure Adjustment: BRIO TANK
Inlet Diameter Φ (Inch-mm): 1"-25mm
Outlet Diameter Φ (Inch-mm): 1"-25mm
Max Performance (M): 63.00
Max Flow Rate (m3/h): 7.80
Body Material: Stainless Steel AISI 304
Impeller Material: Stainless Steel AISI 304
Self-priming (M): No
Suction Lift (M): 7
Pumped Liquid Temperature (°C): 60
Ambient Temperature (°C): 40
Power Supply: Electric Power.
- Type
- Multistage
- Power Source
- Single Phase
- Maximum Pressure
- 6.3 bar
- Maximum Suction Height
- 63 m
- Horsepower
- 1.25 hp
- Power
- 900 W
- Maximum Supply
- 7.8 m³/h
- Inverter
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
