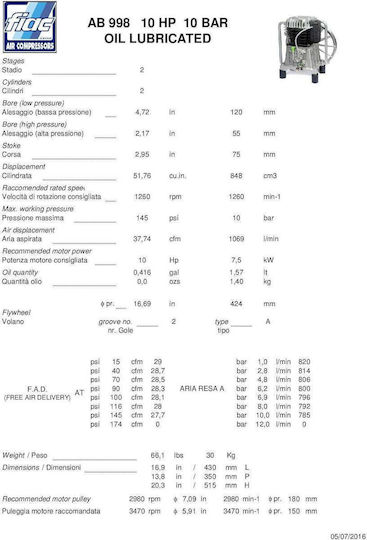

The air compressor head has the following features:

• Stages: 2
• Cylinders: 2
• Bore (low pressure): 120 mm
• Bore (high pressure): 55 mm
• Piston Stroke: 75 mm
• Displacement: 848 cm³
• Recommended nominal speed: 1260 rpm
• Maximum working pressure: 10 bar
• Air intake: 1069 l/min
• Recommended engine power: 10 Hp
• Oil quantity: 1.57 lt
• Flywheel: 424 mm (2 belts - type "A")
• F.A.D. (Free Air Delivery):
• bar 1.0: 820 l/min
• bar 2.8: 814 l/min
• bar 4.8: 806 l/min
• bar 6.2: 800 l/min
• bar 6.9: 796 l/min
• bar 8.0: 792 l/min
• bar 10.0: 785 l/min
• bar 12.0: 0 l/min
• Weight: 30 Kg
• Recommended engine pulley (2980 rpm): 180 mm
