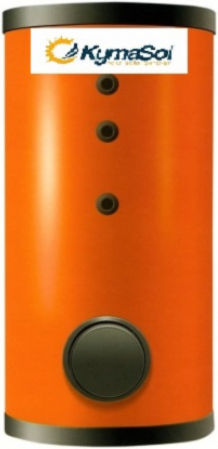

The KymaSol BL1 Double Energy Boiler 150lt has a height of 108 cm and a diameter of 56 cm. It is manufactured according to European standards and is available in capacities from 200L to 1000L. It features up to two spiral heat exchangers that heat the water in the main tank through convection. The exchanger allows the connection of solar collectors, burners (oil, pellet, wood, gas), heat pumps, and other devices with closed water heating circuits.

The tank includes provisions for temperature sensors, a thermometer, and an electric resistance. It is made of EN 10130 Al 1998 DCP sheet metal and has ecological polyurethane insulation with a thickness of 55mm. Anti-corrosion protection is achieved with liquid enamel heated to 850°C and a magnesium anode.

Features:

• Height: 108cm
• Diameter: 56cm
• Weight: 61kg
• Material: Sheet metal
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 95°C
• Insulation: Polyurethane foam 50 mm
• Electric resistance: On request

The installation of an Expansion Tank, Safety Valve, and Anodic Protection in the hot water system is required.

Advantages:

• Antimicrobial design for heating potable water.
• Improvement of economic efficiency for any heating system.
• Constant and quick supply of hot water.
• Functional design for space saving.
• Long lifespan.
