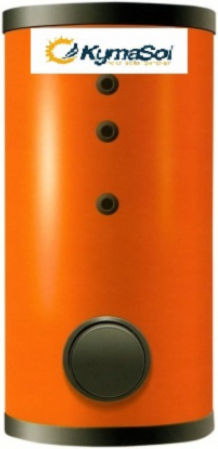

Double Energy Boiler 500lt BL1 KymaSol with dimensions 190cm (H) x 75cm (D).

Features:

• Manufactured according to European standards from 200L to 1000L.
• Two spiral heat exchangers for water heating.
• Connection with solar collectors, burners (oil, pellet, wood, gas), heat pumps, and buffer tanks.
• Receptors for temperature sensors and thermometers.
• Constructed according to EN 12897:2006 from sheet metal EN 10130 Al 1998 DCP.
• Eco-friendly polyurethane insulation 52kg/m³, 55mm thickness.
• Anti-corrosion protection with liquid enamel and magnesium anode.
• Simultaneous use of three energy sources (Solar, Chemical, Electrical).
• External PVC leather or metallic surface coating in color options.

Specifications:

• Height: 190cm
• Diameter: 75cm
• Weight: 171kg
• Material: Sheet metal
• Welding: Automatic metal welding
• Protection coating: Glass – Enamel
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 95°C
• Insulation: Polyurethane foam 50 mm, density 52 kg/m3
• Exchanger: Metal tube
• Electric resistance: Custom order
• Flange: Diameter Ø 170 mm

Important: All Boiler installations require the installation of an Expansion Tank, Safety Valve, and Cathodic Protection for hot water usage.

Advantages:

• Antimicrobial design for heating potable water.
• Improvement of economic efficiency in heating systems.
• Quick and steady hot water supply.
• Functional and practical design.
• Space-saving design.
• Long lifespan.
