AC Input Characteristics

• Input Range: 400VAC ± 10%
• Input Type: 3P + N + PE
• Maximum Current: 32A / phase
• Network Frequency: 50/60Hz

AC Output Characteristics

• Output Voltage: 400VAC
• Output Power: 22 KW maximum (11 KW per output)
• Output Current: 16 A / phase per charging output

Operating Conditions

• Operating Temperature: -25 °C – +50°C
• Storage Temperature: -30°C – +70°C
• Humidity: 5% – 95% RH (non-condensing)
• Installation Altitude: Up to 2000m

Construction

• Enclosure: Galvanized Sheet, Polycarbonate
• Protection Rating IP: IP55
• Mechanical Strength Rating IK: IK10

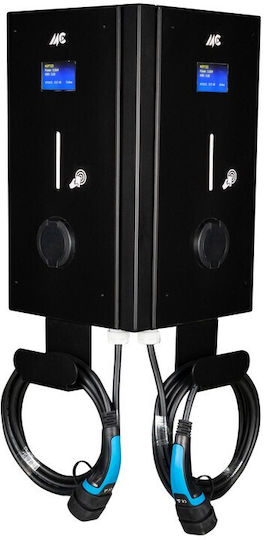

• Screen: 2 x LCD 4.3” (one screen for each charging output)

Outputs

• Two Mode 3 outputs with 5-meter cables each and Type 2 plugs.
• Dimensions of each charger: 510x605x410 (length x height x width)

Electronic Parts

• Energy Meter: 3-phase energy meter with MID certification – One meter per output

Protection

• Surge Protection: SPD Type 2
• Leakage Current Protection (residual current device): RCD Type B
• With detection of AC currents 30mA & DC smooth currents 6mA per output
• Overvoltage (OVP) & Undervoltage (UVP) Protection
• Ground Loss Detection
• Overtemperature Protection (OTP)

Communication Protocol: S2W & OCPP 1.6 JSON

Management Menu Languages: Greek, English

Data Management: RFID

Connectivity: Wired or wireless (WIFI) or via GSM

Charging: Time 1.5-2 hours

Charging Outputs: Ability to simultaneously charge 2 vehicles at the maximum power of 11kW (22kW total)

Installation

• Phase Safety: Network 40A
• Network Level – three-phase supply: No 4 - Maximum agreed power 55kVA
• Explosion Proof: Installation outside ATEX zones
• Substation: Not required
• Cable Cross-Section: 5x10mm2 (cable length up to 120m), 5x16mm2 (cable length > 120m)

Certification

• Standards: IEC EN 61851-1:2019, IEC 61851-21-2:2018, EN 62196-1:2014, EN 62196-2:2016, CE
• Warranty: 2 years
• Country of Origin: Greek Manufacture
