Description
Specifications
Key System Features
- Energy performance: Uf: 1.8 – 2.2 W/m2K
- Uw: 1.5 W/m2K with double glazing (Ug: 1.0)
- Uw: 1.2 W/m2K with triple glazing (Ug: 0.6)
Thermal Insulation

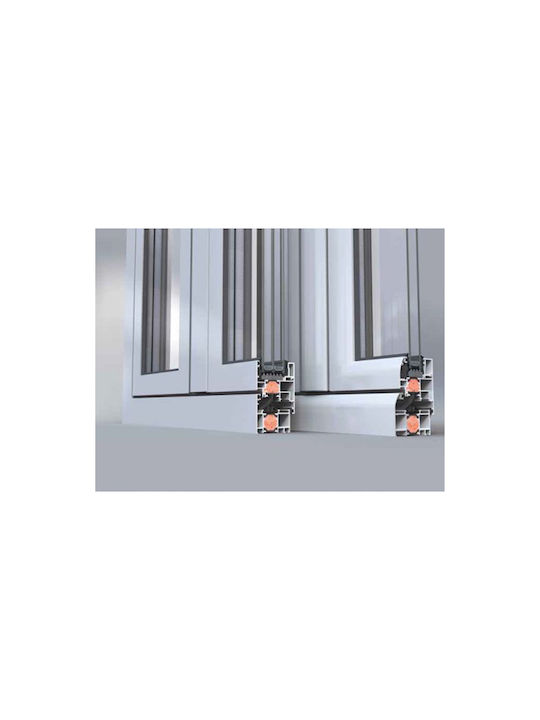

- Additional thermal insulation zone with I2 technology foam core.
- Polyamide rods with fiberglass reinforcement for high thermal insulation.
- Central insert and glazing seals with flaps.
Security
- Certified security WK2.
- Up to 21 perimeter locking points.
ELVIAL Sealing System
- EPDM elastic corners for central and perimeter seals.
- Optimized additional seal for water-tightness.
- Classification in the highest water-tightness category: E900.
Durability
- Up to 130 kg / leaf up to 2,350mm in height.
- Excellent functionality with specially designed polyamide corners.
Technical Specifications

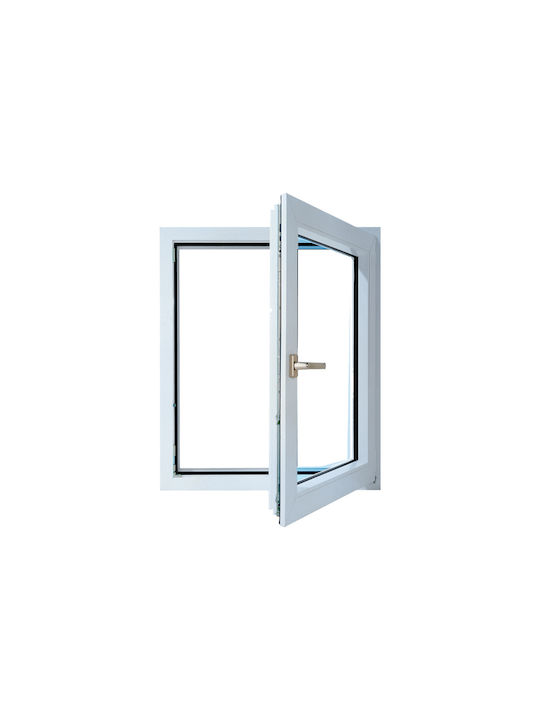

- Frame type: Single-leaf hinged thermal insulation
- Manufacturer: Elvial
- Series: 4600 ai2
- Opening direction: Right and left
- Glazing: Double energy glazing 4/15.5/4
- Electrostatic painting: RAL 9016 (white)
- Thermal break: Yes
- Sound insulation: Yes
- Anti-burglary protection: Yes
- Espagnolette: Yes (not included)
- Perimeter frame: Yes (not included)
- Sandblasting: Yes (if desired)
- Recalling: Yes (if possible)
- Certification: Elvial
- Manufacturing time: 20-25 days
- Product Number
- EL4600-90-100
- Type
- Window
- Frame & Shutter Type
- Hinged
- Material
- Aluminum
- Roof
- No
- Sound Insulation
- No
- Width
- 90 cm
- Height
- 100 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
