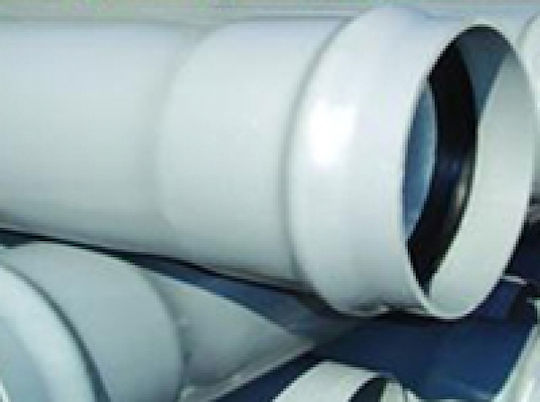

Plastic pipe for underground water supply-irrigation networks.

Produced in a straight length of 6 meters with an integrated socket connector (sealing with a rubber ring) in nominal diameters from 50 to 500mm, according to European specifications ELOT-EN.

• External Diameter: 110mm, Wall Thickness: 6.5mm, Internal Diameter: 97mm, Weight: 3.15kg/m
• External Diameter: 125mm, Wall Thickness: 7.4mm, Internal Diameter: 110.2mm, Weight: 3.97kg/m
• External Diameter: 140mm, Wall Thickness: 8.2mm, Internal Diameter: 123.6mm, Weight: 5.05kg/m
• External Diameter: 160mm, Wall Thickness: 9.4mm, Internal Diameter: 141.2mm, Weight: 6.58kg/m
• External Diameter: 200mm, Wall Thickness: 11.8mm, Internal Diameter: 176.4mm, Weight: 10.31kg/m
• External Diameter: 225mm, Wall Thickness: 13.2mm, Internal Diameter: 198.6mm, Weight: 13kg/m
• External Diameter: 250mm, Wall Thickness: 14.7mm, Internal Diameter: 220.6mm, Weight: 16.03kg/m
• External Diameter: 280mm, Wall Thickness: 16.5mm, Internal Diameter: 247mm, Weight: 20.04kg/m
• External Diameter: 315mm, Wall Thickness: 18.5mm, Internal Diameter: 278mm, Weight: 25.4kg/m
• External Diameter: 355mm, Wall Thickness: 20.9mm, Internal Diameter: 313.2mm, Weight: 32.36kg/m
• External Diameter: 400mm, Wall Thickness: 23.5mm, Internal Diameter: 353mm, Weight: 40.93kg/m

The pipes are produced from rigid PVC 100.
