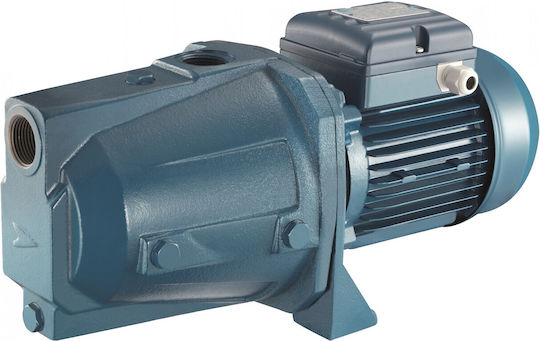

Pentax Electric Surface Water Pump 2.5hp
Surface Water Pumps

Pentax Electric Surface Water Pump 2.5hp Code: CAM 200/00

Electric surface pumps

Centrifugal self-priming pump for water supply, suitable for small residential systems. It can be connected to pressure tanks for transporting liquids and draining tanks. It is...

Electric surface pumps

Centrifugal self-priming pump for water supply, suitable for small residential systems. It can be connected to pressure tanks for transporting liquids and draining tanks. It is also used for gardening.

Technical Specifications:

  • Cast iron body
  • Bracket: aluminum for 100N/6140/6 & cast iron for 100N/0-200300
  • Impeller: Noryl(00), Brass...
See full description See full description

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
This product is temporarily unavailable at Skroutz Last updated: 3 days ago
Review the product
Product report

Description

Description

Electric surface pumps

Centrifugal self-priming pump for water supply, suitable for small residential systems. It can be connected to pressure tanks for transporting liquids and draining tanks. It is also used for gardening.

Technical Specifications:

  • Cast iron body
  • Bracket: aluminum for 100N/6÷140/6 & cast iron for 100N/0-200÷300
  • Impeller: Noryl®(00), Brass (61), Inox (62)
  • Seal: ceramic-graphite
  • Stainless steel shaft AISI 416
  • Liquid Temperature: 0 – 50°C
  • Operating pressure: max 7 bar (100N÷140), max 8 bar (200÷300)
  • Dipole induction motor: 3~ 230/400V-50Hz, 1~ 230V-50Hz (with thermal protection)
  • Insulation class: F
  • Protection rating: IPX4
  • Voltage: 1x230 V - Power: 2.5 hp - Current: 10.4 A - Outlet: 1½" x 1¼"
  • Dimensions: 535x235x230H
  • Weight: 27.0 kg

Flow Q Κ/Ω (m3/h-l/min):

  • 0, 0.6, 1.2, 1.8, 2.4, 3, 3.6, 4.2, 4.8, 6, 7.2

Manometric Height H (m):

  • 62.7, -, 56.8, -, 51.5, -, 46.8, -, 42.4, 38.4, 34.8

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
CAM 200/00

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Set
No

Technical Specifications

Horsepower
2.5 hp
Pressure
7 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Electric surface pumps

Centrifugal self-priming pump for water supply, suitable for small residential systems. It can be connected to pressure tanks for transporting liquids and draining tanks. It is also used for gardening.

Technical Specifications:

  • Cast iron body
  • Bracket: aluminum for 100N/6÷140/6 & cast iron for 100N/0-200÷300
  • Impeller: Noryl®(00), Brass (61), Inox (62)
  • Seal: ceramic-graphite
  • Stainless steel shaft AISI 416
  • Liquid Temperature: 0 – 50°C
  • Operating pressure: max 7 bar (100N÷140), max 8 bar (200÷300)
  • Dipole induction motor: 3~ 230/400V-50Hz, 1~ 230V-50Hz (with thermal protection)
  • Insulation class: F
  • Protection rating: IPX4
  • Voltage: 1x230 V - Power: 2.5 hp - Current: 10.4 A - Outlet: 1½" x 1¼"
  • Dimensions: 535x235x230H
  • Weight: 27.0 kg

Flow Q Κ/Ω (m3/h-l/min):

  • 0, 0.6, 1.2, 1.8, 2.4, 3, 3.6, 4.2, 4.8, 6, 7.2

Manometric Height H (m):

  • 62.7, -, 56.8, -, 51.5, -, 46.8, -, 42.4, 38.4, 34.8

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
CAM 200/00

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Set
No

Technical Specifications

Horsepower
2.5 hp
Pressure
7 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
