Solar Water Heater Tanks

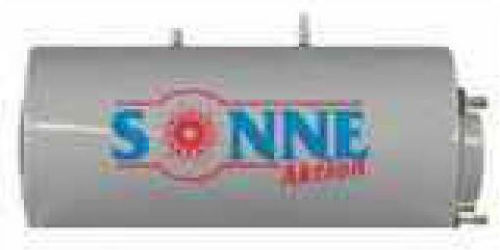

Sonne Solar Water Heater Tank 160lt Galvanized Triple Energy

TECHNICAL CHARACTERISTICS OF GALVANISED WATER TANK

  • Water tank made from European steel sheets with a thickness of 3mm.
  • Jacket made from European steel sheets with a thickness of 1.5mm for...

TECHNICAL CHARACTERISTICS OF GALVANISED WATER TANK

  • Water tank made from European steel sheets with a thickness of 3mm.
  • Jacket made from European steel sheets with a thickness of 1.5mm for transferring heat from the closed circuit to the tank's interior.
  • Steel heat exchanger for connection with the central heating boiler (triple energy).
  • Thermal insulation...
See full description See full description
568 05
Preparation for shipment within 6 days
Free  shipping cost
From Aaceg
Νίκαια, Αττικής
Shop homepage

Description

Description

TECHNICAL CHARACTERISTICS OF GALVANISED WATER TANK

  • Water tank made from European steel sheets with a thickness of 3mm.
  • Jacket made from European steel sheets with a thickness of 1.5mm for transferring heat from the closed circuit to the tank's interior.
  • Steel heat exchanger for connection with the central heating boiler (triple energy).
  • Thermal insulation from ecological high-density expanded polyurethane 44 Kg/m3 thickness 60mm & thermal conductivity coefficient λ=0.0180 W/mK.
  • Exterior casing from Aluzinc aluminum sheet pre-painted in grey color or, optionally, in tile red or white RAL 9002.
  • Alternatively, constructed from stainless steel (INOX).
  • Side covers specially designed and shaped for snap retention without rivets.
  • Flanged electric resistance 3.5 KW with an immersible bipolar thermostat & integrated safety thermostat.
  • Magnesium rod for cathodic protection & prevention of electrolytic corrosion.

Manufacturer

See full description

Specifications

Specifications

Nominal Capacity
160 lt
Drum Material
Galvanized
Operation Mode
Triple Energy
Heat Pump
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

TECHNICAL CHARACTERISTICS OF GALVANISED WATER TANK

  • Water tank made from European steel sheets with a thickness of 3mm.
  • Jacket made from European steel sheets with a thickness of 1.5mm for transferring heat from the closed circuit to the tank's interior.
  • Steel heat exchanger for connection with the central heating boiler (triple energy).
  • Thermal insulation from ecological high-density expanded polyurethane 44 Kg/m3 thickness 60mm & thermal conductivity coefficient λ=0.0180 W/mK.
  • Exterior casing from Aluzinc aluminum sheet pre-painted in grey color or, optionally, in tile red or white RAL 9002.
  • Alternatively, constructed from stainless steel (INOX).
  • Side covers specially designed and shaped for snap retention without rivets.
  • Flanged electric resistance 3.5 KW with an immersible bipolar thermostat & integrated safety thermostat.
  • Magnesium rod for cathodic protection & prevention of electrolytic corrosion.

Manufacturer

Nominal Capacity
160 lt
Drum Material
Galvanized
Operation Mode
Triple Energy
Heat Pump
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

568,05 € Shipping Cost: Free
