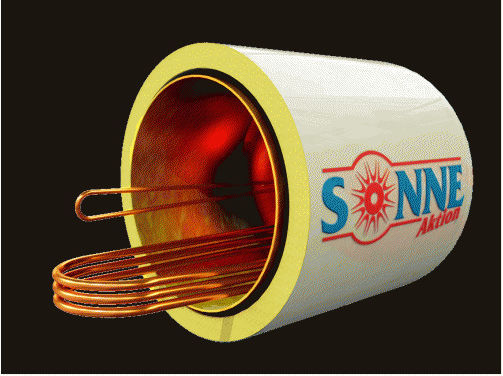

Technical Specifications of Copper Water Heater Tank

• Tank: Made from copper Cu specially shaped into 2 bowls joined together with a single welding seam.
• Jacket: Made from copper without impurities and according to international copper specifications.
• Cold water inlet and hot water outlet: Copper pipes with a diameter of Ø 21 X 2.2 and ½'' thread.
• Fitting for closed circuit safety valve: ½'' copper pipe.
• Insulation: High-density expanded polyurethane (44 kg/m3) with a thickness of 60 mm.
• Thermal conductivity of insulation: 0.0180 W/mK.
• External casing: Available in four types according to your needs (gray - inox - white - terracotta).
• Side caps: Specially designed and shaped pressed - snap caps, without auxiliary retention from rivets.
• Electric resistance: Power according to the regulations of the destination country with a thermostat of single-pole control and bipolar protection.
• Receptacle for the thermostat stem.
