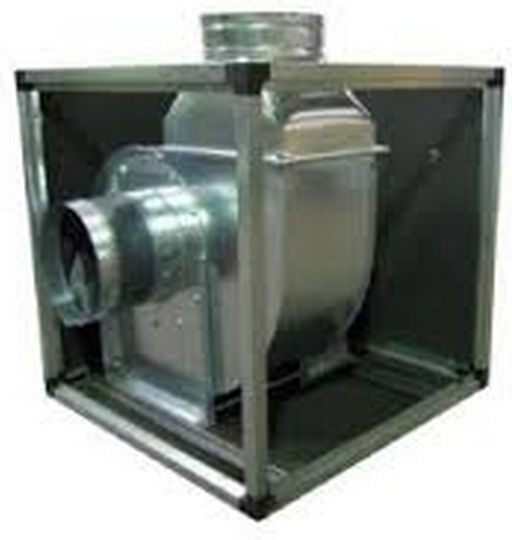

Centrifugal single suction extractor with immediate movement in soundproofed casing F/S.
-
Airflow capacity: 13,000 m3/h
-
Power: 5.5 HP - 380 V
-
Inlet nozzle: Φ350mm (internal)
-
Exhaust outlet: Φ350mm (internal)
-
External dimensions: 1000*1000*1000 mm (L*W*H)
The casing consists of galvanized profile, triple plastic corners, covers made of 0.7 mm galvanized sheet metal with internal insulation of 10 mm sound-absorbing material. Suitable for ventilation of professional kitchens, grills, industrial spaces, cabins, etc.
-
Electric motors: high-standard IP-55, Class F
-
Casing construction: made of galvanized steel sheet
-
Impeller: spoon-shaped, dynamically and statically balanced with wide, sparse blades
The impeller allows easy cleaning and prevents the accumulation of grease residues, increasing its lifespan. It is recommended to install a protective cover on the electric motors, which should be protected with thermal protection, except when using an Inverter.
CE certification. Speed adjustment capability (not included in the price): Speed controller P1 for motors up to 1.5HP/220V, Inverter with 220V input for motors up to 4.0HP/380V, Inverter with 380V input for all 380V motors, Inverter with 380V input for all 950 RPM motors.
