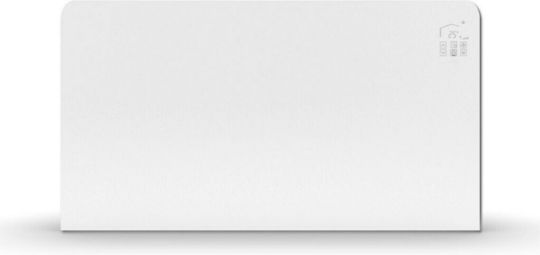

Fan coils are indoor air conditioning units for cooling and heating that are connected to a water circuit and serve as the system for transmitting thermal energy within the installation spaces. Their operation is based on the forced circulation of air created by the built-in fan.
Features:
- Rotating air outlet louver for uniform distribution of cooling/heating in the room.
- Very low power consumption at low fan speed of 2W/h.
- Automatic adjustment of air speed.
- Smart electronic board for direct connection to a heat pump.
- Possibility of connection to a common on/off room thermostat for easy management.
- Quiet operation (25 dB).
- Activated carbon filters.
- Support feet.
- Quick and easy installation.
Technical Specifications:
- Heating Capacity: 1350W (Room Temperature (DB/WB): 20oC/-, Water Temperature (inlet/outlet): 50oC/45oC).
- Heating Capacity: 2550W (Room Temperature (DB/WB): 20oC/-, Water Temperature (inlet/outlet): 70oC/60oC).
- Cooling Capacity: 1000W (Room Temperature (DB/WB): 27oC/19oC, Water Temperature (inlet/outlet): 7oC/12oC).
- Power Supply: 220-240V/50Hz.
- Air Supply: 160 m³/h.
- Dimensions: 700 x 130 x 670 mm.
Wireless Fan Coil Controller Bravair.
- Product Number
- PFP-025
- Placement
- Floor
- Cooling Power
- 1 kW
- Heating Power
- 1.35 kW
- Slim
- Yes
- Colour
- White
- Width
- 70 cm
- Length
- 13 cm
- Height
- 67 cm
