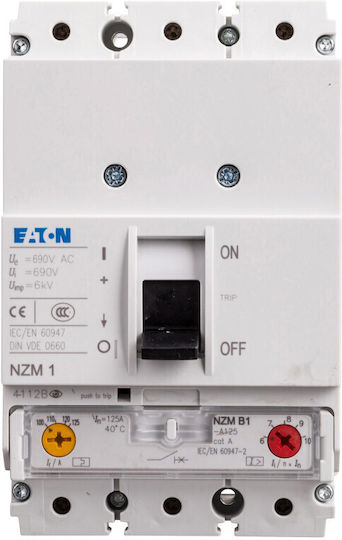

Circuit Breaker 3P 125A 25kA NZMB1-A125
- Device construction: permanently damaged
- Number of poles: 3
- Number of auxiliary contacts with switching: 0
- Number of auxiliary contacts with breaking: 0
- Number of auxiliary contacts with closing: 0
- Suitable for installation on DIN rail: no
- Optional drive mechanism: yes
- Main circuit connections: front
- Type of switching element: lever
- Main circuit connection type: frame clip
- Degree of protection (IP): IP20
- Built-in drive mechanism: no
- With undervoltage protection: no
- Overload protection setting range [A] up to: 125
- Overload protection setting range [A] from: 100
- Adjustable instantaneous protection limit [A] up to: 1250
- Adjustable instantaneous protection limit [A] from: 750
- With trip indicator: no
- Built-in ground protection: no
- Point interconnection capacity lcu at 400 V, 50 Hz [kA]: 25
- Rated continuous current Iu [A]: 125
Specifications
- Number of Poles
- 3
- Rated Current
- 125 A
Power Supply
- AC
- Yes
- DC
- Yes
