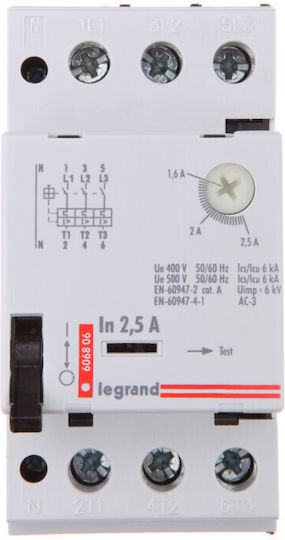

Motor switch M 250 with thermal and electromagnetic release. Neutral path N. Equipped with a window for installation description.
- Mounting: TH 35 rail
- IP protection degree: IP 3x
- Rated insulation voltage: 690V
- Mechanical endurance: after use
- Rated current (In): 0.1...25A
- Utilization category: AC-3
- Working position: Any
- Width in modules: 2.5
- Connection marking voltage: 230V, 400V, 500V
- Current activation range: 1.6-2.5A
- Shock resistance: 10gn (5ms)
- Number of poles: 3
- Phase loss sensitivity: No
- Integrated undervoltage release: No
- Integrated auxiliary contact: No
- Rated operational power at 400V: 0.8 kW
- Overload release: 1.6 - 2.5A
