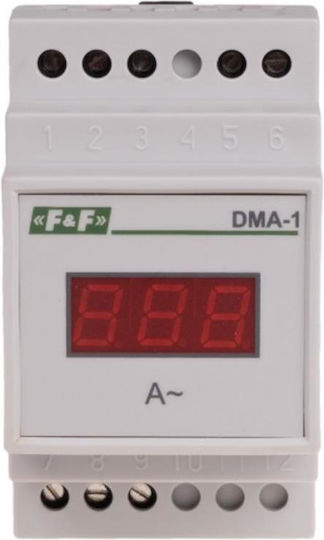

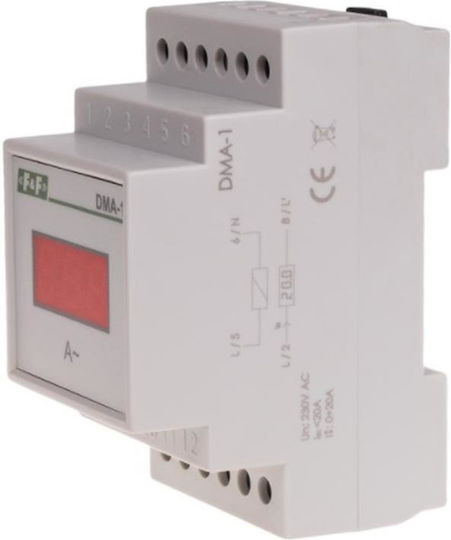

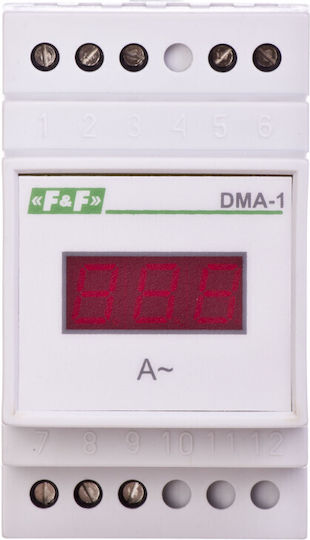

Digital single-phase unit 0-20A for direct measurement (DMA-1)
- Technical specifications:
- Supply voltage: 100-300V AC
- Supply frequency: 45÷55Hz
- Maximum current: 20A
- Maximum instantaneous overload: 40A
- Indication accuracy: 0.5%
- Display for one phase: 3 LED segments 10×6mm
- Power consumption: 4W
- Operating temperature: -25÷50°C
- Connection: heavy-duty terminals 2.5mm
- Dimensions: 3 modules (52.5mm)
- Mounting: on TH-35 rail
- Protection: IP20
The effective value converter will indicate the correct current value in distorted flows.
- Type
- Ammeter
- Display Type
- Digital
- Installation Type
- Rail
- Number of Phases
- Single-phase
