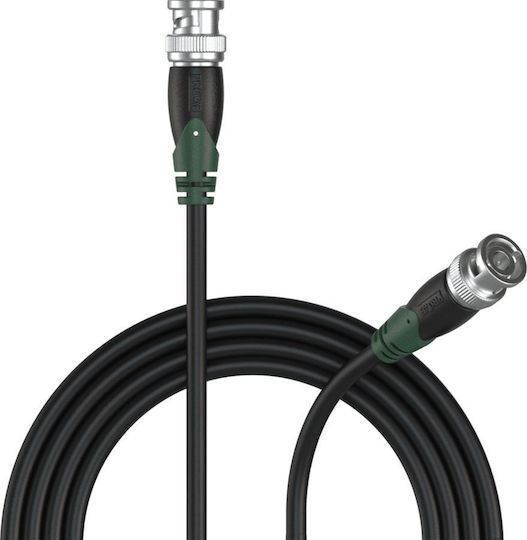

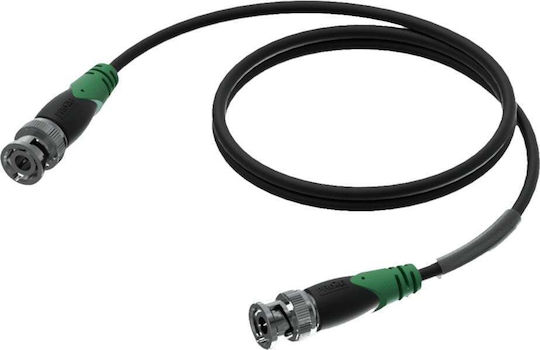

CLV156 is a coaxial cable with a characteristic impedance of 50 Ohm, manufactured according to the RG58 standard. It is mainly used in radio transmitter applications, allowing the connection of the antenna to a radio frequency receiver or transmitter.
- Physical characteristics:
- Cable type: Coaxial cable 50 Ω
- Inner conductor: Material BC 7 x 0.16 mm (Ø) (OFC)
- Cross-section: 0.125 mm²
- American wire gauge: 26 AWG
- Number of conductors: 1
- Insulation: Material PE 1.52 mm (Ø)
- Color: White
- Shielding: Braids BC 16 x 5 x 0.1 mm (Ø) (OFC)
- Outer jacket: Material PVC 5 mm (Ø)
- Electrical characteristics:
- Wire resistance: 13.175 Ω / 100 m
- Shield resistance: 3.5 Ω / 100 m
- Rated voltage: 30 V
- Propagation speed: 64%
- Connections:
- Connection type: BNC - BNC
- Plug type: Plug - Plug
- Cable length: 1.5 m
- Type
- BNC
- Terminal A
- BNC male
- Terminal B
- BNC male
- Length
- 1.5 m
