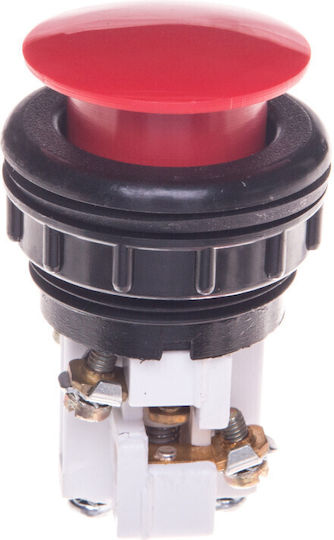

Control button 38mm red with spring return 1Z 1R (W0-N1-1DP C)
- Palm button
- Nominal insulation voltage: 500 V AC
- Switching current for AC15 230/400 V: 6/4 A
- Nominal switching frequency: 600 cycles/h
- Switching element: 1NO+1NC
- Ambient temperature: -15 to +30°C
- Hole diameter: 38mm
- Button color: red
- Work surface protection level: IP30
- Protection degree of the section under the work surface: IP00
- Type
- Push Button
