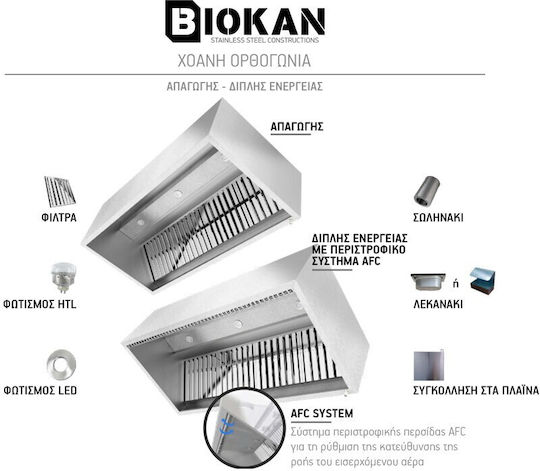

Professional wall-mounted dual energy extractor hood, rectangular.
Made entirely of satin AISI 304 stainless steel with a Scotch-Brite finish.
Sheet thickness of 0.8 mm.
Grease filter bases for filters with a width of 3 cm.
Welded in an inert argon atmosphere using the TIG method.
Perimeter channel with smooth turns.
Diameter and number of exhaust and intake air holes are standardized but can also be adjusted upon consultation.
Grease extraction pipe and grease collection tray.
Dual energy with a 5 cm opening for a fixed direction of incoming air flow.
The Dual Energy hoods intake air from the external environment, replenishing the air they extract, also called eco-friendly, they prevent the exit of many cubic meters of conditioned air from the kitchen space.
With AFC rotating system.
AFC System: Rotary damper system for adjusting the direction of the incoming air flow.

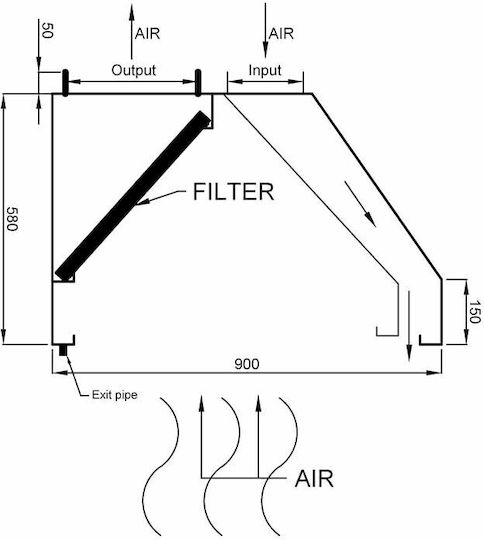

- Dimensions: 3960x900x580 mm.
- Weight: 87 kg.
- Input diameter: 3 x Φ250.
- Output diameter: 3 x Φ300.
- Socket for eight (8) filters (not included).
Optional Features:
- Option to manufacture with sheet thickness greater than 0.8 mm.
- Grease filters in standard sizes as well as by arrangement.
- Rings for ceiling mounting free of charge upon consultation.
- Option to manufacture from other materials only upon arrangement.
- Integrated lighting with LED spots or with HTL lamps resistant to high temperatures.
- Custom funnel sizes and special constructions (adaptation to column and corner hoods).
Specifications
- Type
- Bubble
Dimensions
- Length
- 396 cm
- Width
- 90 cm
- Height
- 58 cm
