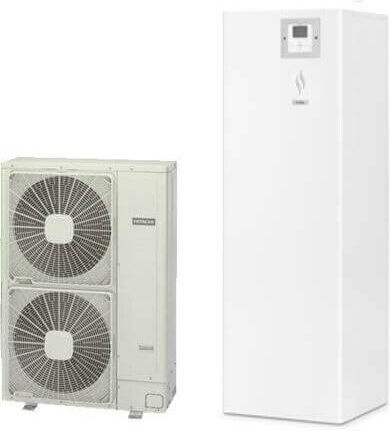

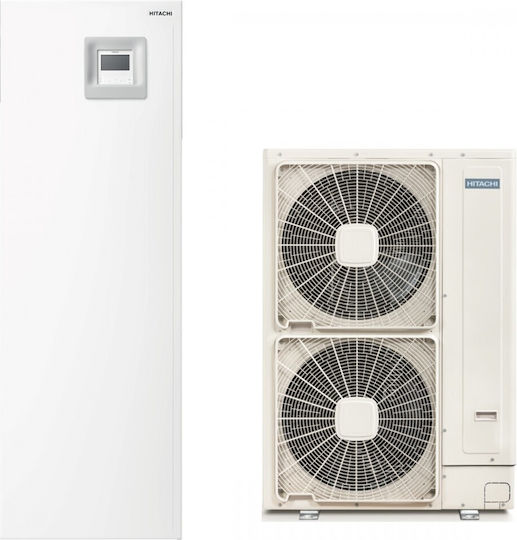

Hitachi Yutaki-S Combi Single Phase Heat Pump 12.9kW 60°C Split
Heat Pumps

Hitachi Yutaki-S Combi Single Phase Heat Pump 12.9kW 60°C Split Code: RWD-5.0NW1E-220S/RAS-5WHVNPE

Heat Pump HITACHI 14kW Yutaki-S Combi RWD-5.0NW1E-220S/RAS-5WHVNPE

  • Type: Split Single-phase
  • Operating Temperature: 60°C
  • DHW Tank: 260lt
  • Heating Capacity: 14 kW

Heat Pump HITACHI 14kW Yutaki-S Combi RWD-5.0NW1E-220S/RAS-5WHVNPE

  • Type: Split Single-phase
  • Operating Temperature: 60°C
  • DHW Tank: 260lt
  • Heating Capacity: 14 kW
See full description See full description
The product is not available at Skroutz Last updated: about 1 month ago
Review the product
Product report

Description

Description

Heat Pump HITACHI 14kW Yutaki-S Combi RWD-5.0NW1E-220S/RAS-5WHVNPE

  • Type: Split Single-phase
  • Operating Temperature: 60°C
  • DHW Tank: 260lt
  • Heating Capacity: 14 kW

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
RWD-5.0NW1E-220S/RAS-5WHVNPE

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
12.9 kW
Maximum Water Temperature
60 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Split

System Type

Split

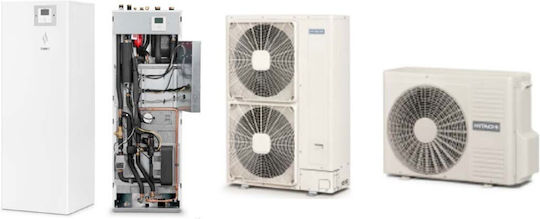

The split system consists of two independent units: the indoor unit (which contains the circulator, heat exchanger, etc.) and the outdoor unit (which houses the compressor, exchanger, fan, etc.), which are connected to each other by copper pipes. Pros: Provides many customization options for individual spaces (e.g. creating different zones according to each space's requirements). There is no fear of the unit freezing, as there is an independent exchanger in the interior of the building. Cons: The above also functions as a disadvantage, as there are limitations on the distance at which the outdoor unit can be placed in relation to the exchanger.
Cooling
Yes
Domestic Hot Water
with Domestic Water Supply

Domestic Hot Water

with Domestic Water Supply
Includes a container for producing hot water for use.
Domestic Hot Water Tank
220 lt
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.

Energy Class

Energy Class (35ºC)
A++
Energy Class (55ºC)
A++
COP (7ºC - 35ºC)
4.71

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
EER (7ºC - 35ºC)
3.54

EER (7ºC - 35ºC)

(Energy Efficiency Ratio) is the measurement that shows us how efficient our pump is in cooling. The higher the efficiency rating, the more efficient our pump is.
Indoor Unit Noise Level
39 dB
Outdoor Unit Noise Level
67 dB

Outdoor Dimensions

Length
799 mm
Height
629 mm
Length
300 mm

Indoor Dimensions

Length
595 mm
Height
1788 mm
Length
598 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
