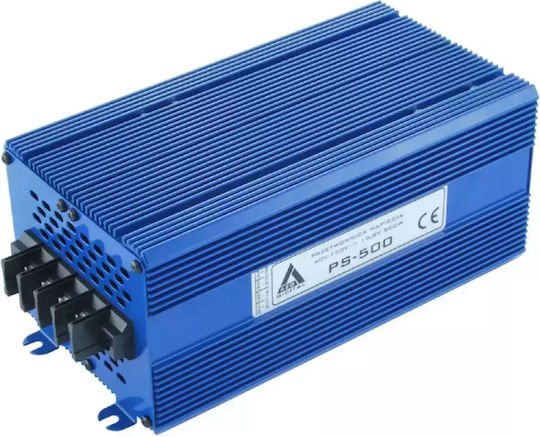

The inverter is used for reducing and stabilizing the voltage in installations with a supply range of 40-130 VDC and features electronic overload and short-circuit protection.
Features:
- Input Voltage: 40-130 VDC
- Output Voltage: 13.8 VDC
- Continuous Power (Uwe below 80V): below 400 W
- Continuous Power (Uwe above 80V): above 400 W
- Maximum Output Power: 450 W
- Overload Protection: 500 W
- Thermal Protection: 80°C
- No-load Current Consumption: less than 60 mA
- Output Noise: below 50 mV
- Input Noise: below 50 mV
- Operating Temperature: -25°C ~ +55°C
- Input/Output Galvanic Isolation: > 0.5 kV rms
- Cooling: Active
- Efficiency: 85%
- Pinouts: M4 Socket
- Housing: Aluminum
- Protection Rating: IP21
- Dimensions (LxWxH): 235x109x96 mm
- Weight: 1.8 kg
- Product Number
- AZO00D1170
- Power
- 500 W
- DC Input Voltage
- 12 V
- Number of Sockets
- -
- Type
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
