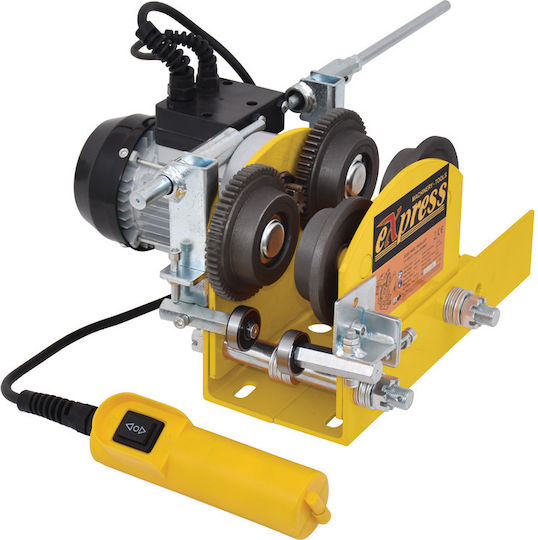

It features limit switches for path delimitation.
Bearings for smooth and safe rolling on the beam.
Compatible with IPE & IPN beams 100-220 and adjustable rollers from 68 to 110 mm.
Minimum radius for a curve of 1 meter.
With a 1.5m wired remote control.
Power supply cord of 65cm with a plug socket.
Induction electric motor 180 Watts - 0.75 A - CLASS B - with an IP54 degree of protection - S3 20% 10 min.
Suitable for trolleys with code from 63020 to 63026, using the corresponding angle set and comes with angles for trolley 63027.
- Load Capacity (kg): 1000
- Voltage/Frequency (V/Hz): 230/50
- Power (Watt): 180
- Input Current (A): 0.75
- Travel Speed (m/min): 16
- Width Adjustment (mm): 68-110
- Package Dimensions LxWxH (mm): 390x330x270
- Weight (kg): 16
- Packaging Weight (kg): 17
- Collapsible
- No
