F&F Phase 1-Pole Power Relay 16A 230V

Liquid level control relay 16A 1P 1-100kOhm with sensor (PZ-828 RC)

Single-state relay. With adjustable sensitivity, single-state relays are used to detect the presence of electrically conductive...

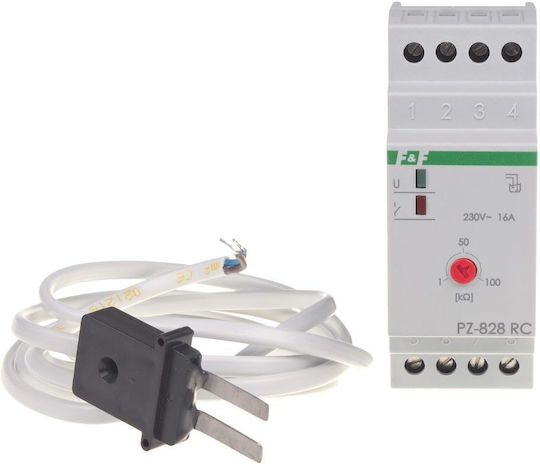

Liquid level control relay 16A 1P 1-100kOhm with sensor (PZ-828 RC)

Single-state relay. With adjustable sensitivity, single-state relays are used to detect the presence of electrically conductive liquids at the flood detector installation level.

  • In dry condition, the relay contact remains in position 7-4.
  • When the probe is immersed in liquid, the relay...
See full description See full description
58 38 €
59 Coins 59 Coins
Delivery by Mon, 06 Jul
2,50 € to a Skroutz Point
Do you want it with Free shipping?
Sent from Poland
From Ihe24
Poland
10 pieces
See Electrical Panel Supplies on the page of Ihe24
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Liquid level control relay 16A 1P 1-100kOhm with sensor (PZ-828 RC)

Single-state relay. With adjustable sensitivity, single-state relays are used to detect the presence of electrically conductive liquids at the flood detector installation level.

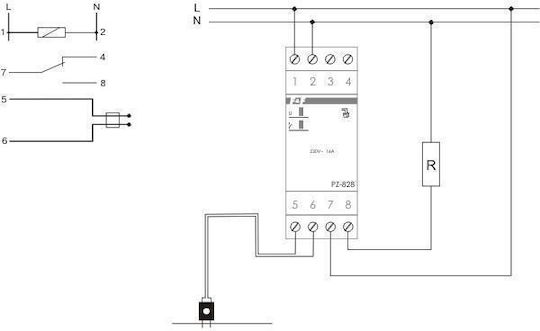

  • In dry condition, the relay contact remains in position 7-4.
  • When the probe is immersed in liquid, the relay contact shifts to position 7-8.
  • Once the liquid level drops, the relay contact returns to position 7-4.
  • The probe design allows for installation on a flat, horizontal surface.
  • It enables quick detection of a fault, while simultaneously deactivating electrical circuits or activating audible or visual signals.

Technical specifications:

  • Power supply voltage: 230 V
  • Maximum load current: 16 AC
  • Contact configuration: 1 × NO/Separated contact YES
  • Sensitivity - adjustable: 1÷100 kΩ
  • Flood detector type: 1 x PZProbe with network terminal separation
  • Power consumption: 1.1 W
  • Operating temperature: -25 ÷ 50 °C
  • Dimensions: 2 units (35 mm)
  • Mounting on rail: 35 mm
  • Protection level: IP20

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Power
Number of Poles
1
Voltage
230 V
Nominal Voltage
16 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
