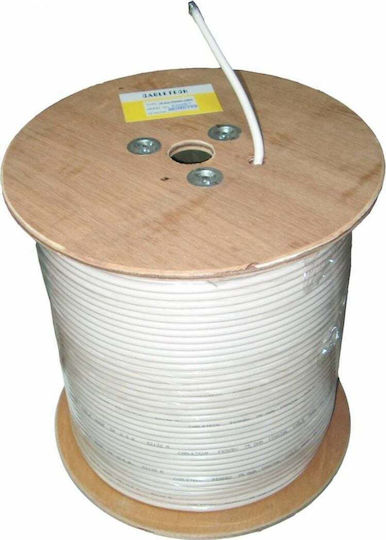

F690 BV Coaxial Cable
- Inner conductor: diameter – 1.02mm copper wire
- Dielectric: diameter – 4.65mm, PE foam
- Screen: 0.04mm, AL foil + polypropylene
- Braid: 8 x 16 diameter 0.1mm Al. wire
- Outer jacket: diameter 6.9mm white PVC
Features
- Average commercial resistance (200MHz): 77.3 Ohm
- Average dielectric permittivity: 1.45
- Cable loss: f= 200MHz: 9.0dB/100m
- Shielding factor: >80dB
- Packaging: 1 - roll: 305 m
- Type
- Coaxial
- Terminal A
- -
- Terminal B
- -
- Length
- 305 m
