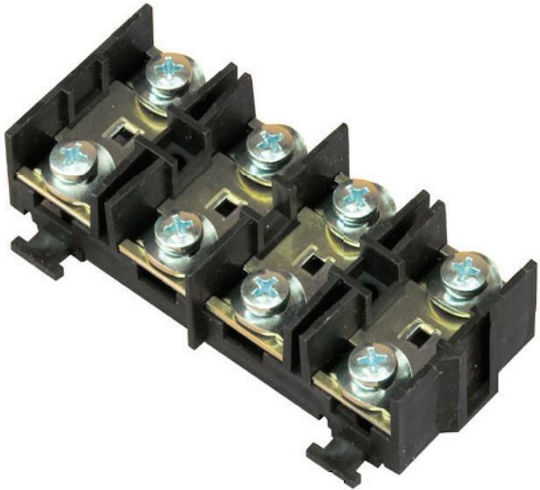

LZ Terminal Strip 4x16mm2 76A E.4006A
- Manufacturer: PAWBOL
- Length: 29 mm
- Color: Black
- Number of poles: 4
- Number of terminals per pole: 2
- Return selection: YES
- Connection position: Side
- Nominal current: 76 A
- Connected single wire cable cross-section (up to): 16 mm2
- Connected single wire cable cross-section (from): 6 mm2
- Connected strand conductor cross-section without ring (up to): 16 mm2
- Connected strand conductor cross-section without ring (from): 6 mm2
- Connected multi-core conductor cross-section (up to): 16 mm2
- Connected multi-core conductor cross-section (from): 6 mm2
- Transparent: No
- Type of insulation material: Thermoplastic
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Installation method: Direct installation
- Grid width: 100 mm
- Explosion protection "EEx e": None
- Protection category: IP 20
- Height at the lowest installation method: 41 mm
