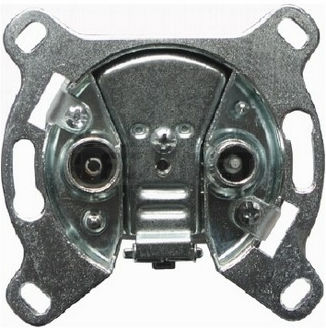

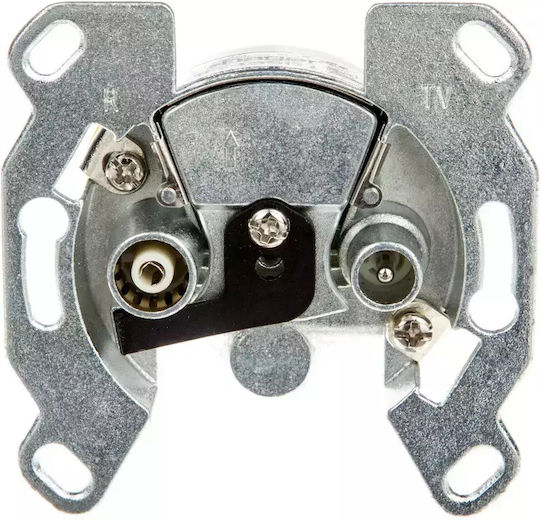

Double-ended antenna socket RTV Mechanism - 53455011 for individual analog and digital DVB-T installations.
Product features:
- Reception of terrestrial and cable signals in a star-shaped structure.
- DC voltage transfer to the TV output with screw terminals.
- Operating frequency: 5-862 MHz.
- Impedance: 75 Ω.
- TV track frequency: 5-68 | 118-862 MHz.
- R track frequency: 88-108 MHz.
- Coupling loss: TV ≤ 2 dB; R ≤ 1.5 dB.
- Type
- TV, Radio
- TV Socket Type
- Mechanism
- Category
- Terminal
- Colour
- -
