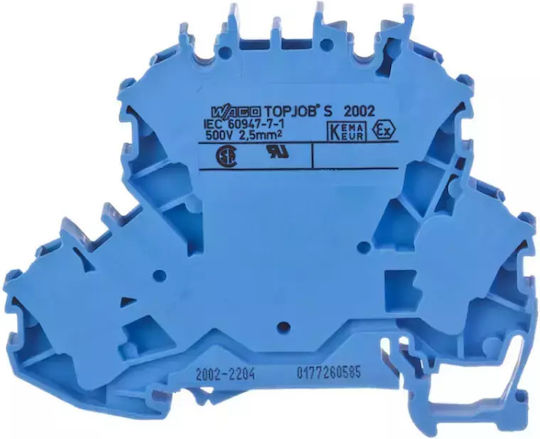

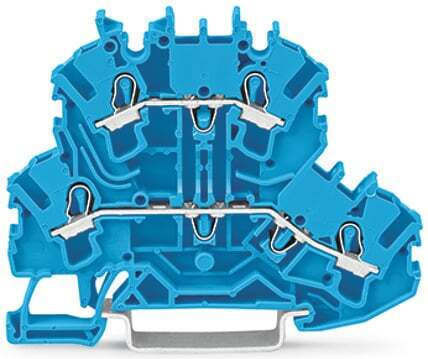

Power socket 2-deck, 2x2-wire, for Ex e II applications, blue - 2002-2204

• Double-deck connector
• Potential designation: N/N
• No marker support
• Total number of terminals: 4
• Total number of dynamic: 2
• Color: blue
• Rated according to IEC/EN 60947-7-1
• Pollution degree: 3
• Rated voltage EN(1): 500V
• Rated impulse voltage: 6kV
• Rated current: 24A
• Rated current (2): 28A
• Rated voltage EN (Ex e II) [V]: 440V
• Rated current (Ex e II) [A]: 20A
• Rated current (Ex e II) with bridge [A]: 18A
• Cable connection technique: Push-in CAGE CLAMP®
• Number of terminals: 2.5mm²
• Single-wire assembly with tools: 0.25-4mm² / 22...12AWG
• Single-wire, plug-in device without tools: 0.75 … 4 mm² / 18 … 12 AWG
• Cable, assembly with tools: 0.25 … 4 mm² / 22 … 12 AWG
• Cable with sheath min. Plug assembly without tools: 0.75 mm² / 18 AWG
• Cable stripping length: 10...12mm
• Wiring type: front wiring
• Construction: horizontal construction
• Description level: description in middle/side
• Insulating material: polyamide 66 (PA 66)
• Fire load: 0.204 MJ
• Weight: 10.153g
• Width: 5.2 mm
• Height: 51.7 mm
• Height from the top edge of the rail: 51.7 mm
• Depth: 69.7 mm
• Mounting type: TS 35 rail
• Rail-mounted terminal blocks
• Stackable terminal blocks for rail
