The price refers to a set for one axle without side passage screws with a centering flange:
- Material: Duralumin PA6
- Spacer thickness: 15 mm per side (30 mm per axle)
- Hole/flange diameter: 57.1 mm
- Hole dimensions: 3x112 mm
- Centering hole depth: 13 mm
- Screws (must be purchased separately):
- Screw M12x1.25 40mm CONE
- Screw M12x1.5 BALL 40mm
- Screw M12x1.5 40mm CONE
- Screw M14x1.5 BALL 40mm
- Screw M14x1.5 40mm CONE
- Screw hardness: 10.9
- Compatible with spacers:
- Smart Fortwo Electric 2009-2014
- Smart Fortwo I3 0.8 CDi 2007-2014
- Smart Fortwo I3 1.0 Brabus 2008-2010
- Smart Fortwo I3 1.0 Turbo 2007-2014
- Smart Fortwo I3 1.0 Turbo Brabus 2010-2014
- Smart Fortwo I3 1.0i 2007-2014
- Smart Roadster I3 0.7 Brabus 2003-2006
- Smart Roadster I3 0.7i 2003-2006

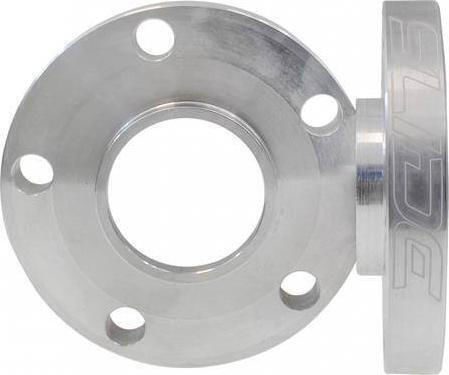

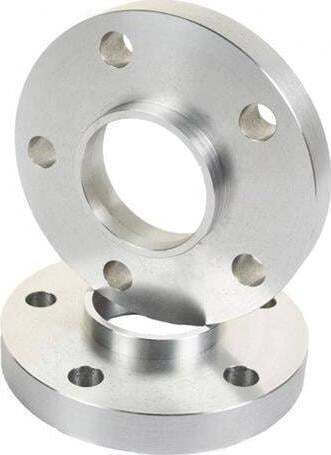

The spacers are made from hard aluminum PA6, providing durability and lightweight. They ensure proper wheel alignment and prevent vibrations in the steering wheel. The pins and rings are protected from pulling during wheel tightening.
Additionally, spacers that change the bolt spacing can be used, facilitating the installation of wheels from another vehicle with the same number of fastening bolts.
