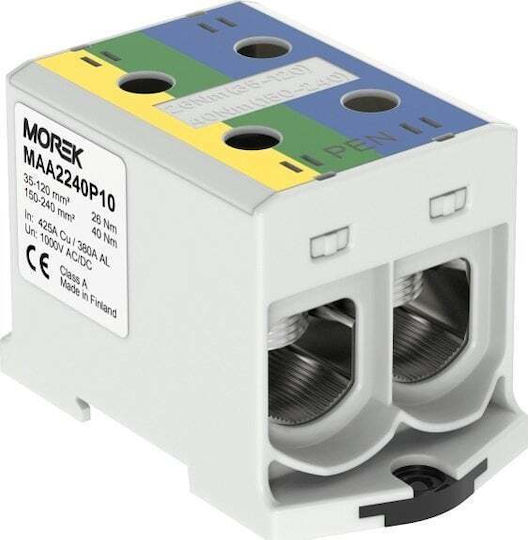

Socket .OTL-PEN240 yellow-green, blue 2xAl/Cu 35-240mm² 1000V
General terminal for TN-C-S installations MAA2240P10.
General-purpose plugs for copper and aluminum cables. OTL general-purpose connectors were created for connecting copper and aluminum cables.
- Cable cross-section: 35-240 mm²
- Degree of protection: IP20
- Rated current: 425 (Cu) / 380 (Al) A
- Rated voltage: 1000 V
- Operating temperature: 80 °C
- Coating material: Aluminum, Polyamide PA66
- Number of connections: 4
- Width: 60 mm
- Length: 106 mm
- Height: 65 mm
- Weight: 340 g
- Tightening torque: 26 Nm (35 - 120 mm²), 40 Nm (150 - 240 mm²)
- Certifications: EN 61238-1; EN 60947-7-1; UL 1059
- Flammability category: UL94 V0
- Code: CN8 85369010
