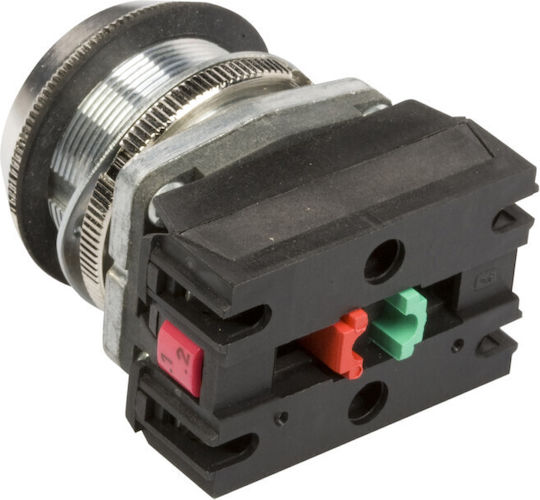

NEF30 30mm Red Emergency Button
The NEF30 emergency button is designed to integrate into desktop computers, control panels, and signaling systems or directly into the bodies of machines and devices with a 30 mm installation hole. It features a modular structure and consists of a driving element and a switching element, which can include 1, 2, or 3 switches. The actuator head is red, and the button is mounted with securing nuts without requiring disassembly of the unit or connectors.
It has an IP56 protection level and can be installed in environments with high humidity, such as production halls or outdoor areas, provided additional protection is offered. It includes 1 normally open contact and 1 normally closed contact and unlocks by rotating.
- Rated insulation voltage: 500 V AC
- Degree of protection above the work surface: IP56
- Degree of protection below the work surface: IP20
- Switching current for AC15 230/400 V: 6/4 A
- Button color: Red
- Hole diameter: 30.0 mm
- Face ring material: Metal
- Type of electrical connection: Screw connection
- Degree of protection (IP): IP56
- Type
- Push Button
