Description
Specifications

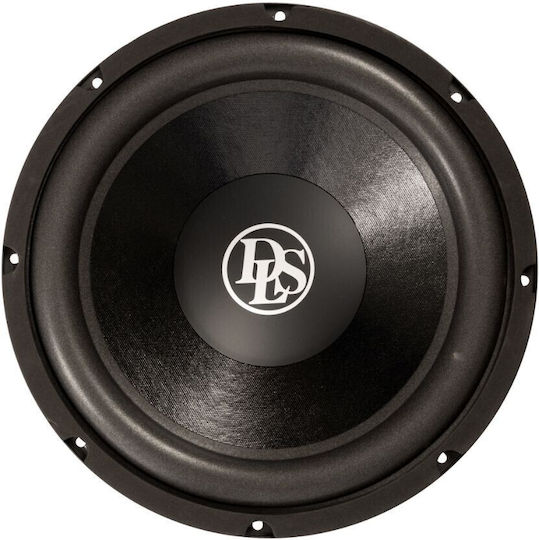

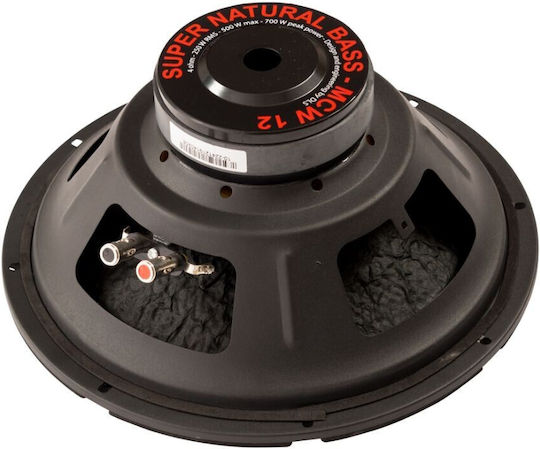

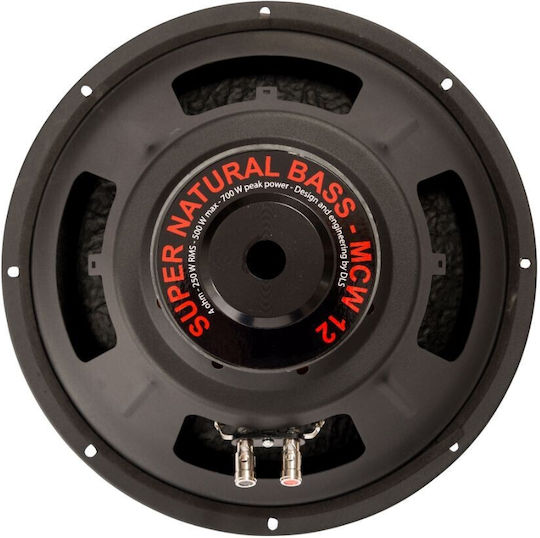

12" (300mm) Car Subwoofer with technical specifications:
- RMS Power Handling: 250W
- Maximum Power Handling: 500W
- Impedance: 4 Ohm
- Sensitivity: 87.75 dB
- Frequency Range: 20 – 1000 Hz
- Magnet Size: 120mm
- Cone Material: Pressed paper
- Mounting Base Diameter: 280mm
- Mounting Depth: 130mm
- Weight: 3.1 kg
The subwoofer offers excellent sound performance with a powerful magnet and pressed paper cone, featuring a large travel and oversized foam surrounds for deep bass. The improved back plate allows for greater movement with a ventilated pole and cable connection. It is suitable for both sealed and vented enclosures.
- X-max: +- 9 mm (0.35″)
- Fs: 33.5 Hz
- Re: 3.0 Ohm
- Qms: 6.16
- Vas: 57 liters
- Vas: 2.0 Cuft
- Qes: 0.57
- Qts: 0.52
- Sd: 491 cm²
- BL: 12.13
- Product Number
- MCW12
- Power (RMS)
- 500 W
- Functionality
- Passive
- with Box
- Yes
- Diameter
- 12 "
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
