Italian mechanism set for sliding garage doors of intensive use, suitable for heavy industrial-type doors up to 1600kg.

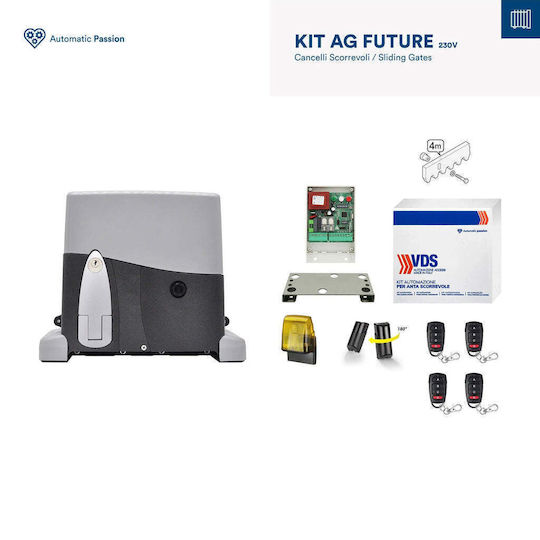

The KIT includes:
- VDS AG-FUTURE-1600-OIL motor with metallic gear box in oil bath
- integrated Autotech 5070S control panel with safety features
- 4m galvanized metal rack with spacers
- 4 remote controls
- LED light with antenna
- wired safety photoelectric cells set with 180-degree rotation capability
- support bracket
- activation strips for limit switches
- disconnection keys
- installation instructions in Greek
Technical Specifications:
- Product code: VDS-AG-FUTURE-1600
- Power supply voltage: 230 VAC
- Motor operating voltage: 230 VAC
- Motor absorbed power: 360 Watt
- Supply current: 1.8 A
- Motor speed: 1400 rpm
- Capacitor capacity: 18μF
- Maximum door weight: 1600Kg
- Mechanism type: Oil lubrication/cooling (oil-bath)
- Internal gears: Metallic
- Maximum usage frequency: S3-80% at 20°C
- Open/close cycles per hour: up to 48 for a door of indicative length 5m at 20°C
- Maximum leaf speed: 10 m/min
- Motor winding thermal protection: 140 °C
- Motor weight: 13Kg
- Motor dimensions: 310 mm x 150 mm x 264 mm
- Motor box dimensions: 330mm x 240mm x 350mm
- Packaging: Carton box
- Country of origin: Italy
- Manufacturer: VDS
Specifications
- Motor type
- Sliding
- Maximum Weight
- 1600 kg
- Maximum Door Length
- 4 m
- Built-in Control Panel
- Yes
Set Contents
- Motor
- 1 pcs
- Control Panel
- 1 pcs
- Remote Control
- 4 pcs
- Security Beacon
- 1 pcs
- External Antenna
- 1 pcs
