Solar Charge Controller MPPT Technology Auto Voltage Recognition Sensor Tracer6415an
Solar Charge Controllers

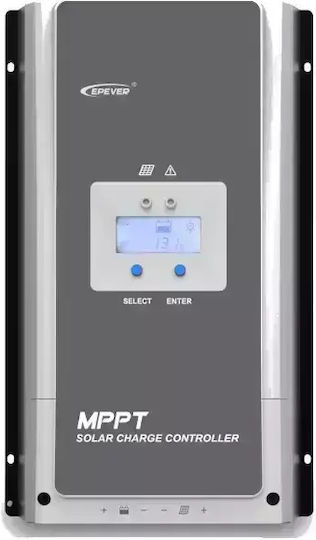

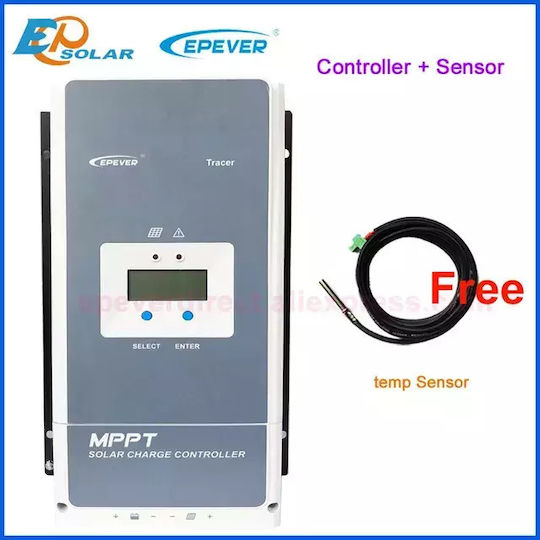

Solar Charge Controller MPPT Technology Auto Voltage Recognition Sensor Tracer6415an

Specifications:

  • Product Type: MPPT Charge Controller with Sensor, Tracer6415AN
  • Supported Battery Types: Sealed, Gel, Flooded
  • Nominal System Voltage: 12V/24V/36V/48V
  • Maximum Open Circuit Voltage of...

Specifications:

  • Product Type: MPPT Charge Controller with Sensor, Tracer6415AN
  • Supported Battery Types: Sealed, Gel, Flooded
  • Nominal System Voltage: 12V/24V/36V/48V
  • Maximum Open Circuit Voltage of PV: 150V/200V
  • Maximum Charging Current: 50A/60A/80A/100A
  • Nominal Charging Capacity: 625W/12V - 1250W/24V - 1875W/36V - 2500W/48V
  • Tracking Efficiency: 99.5%
  • ...
See full description See full description
387 05 €
388 Coins 388 Coins
Delivery Tue, 30 Jun - Thu, 02 Jul
Free   shipping cost
From PharosMarine
Λευκάδα, Λευκάδας
15 pieces
See Photovoltaics & Wind Turbines on the page of PharosMarine
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Specifications:

  • Product Type: MPPT Charge Controller with Sensor, Tracer6415AN
  • Supported Battery Types: Sealed, Gel, Flooded
  • Nominal System Voltage: 12V/24V/36V/48V
  • Maximum Open Circuit Voltage of PV: 150V/200V
  • Maximum Charging Current: 50A/60A/80A/100A
  • Nominal Charging Capacity: 625W/12V - 1250W/24V - 1875W/36V - 2500W/48V
  • Tracking Efficiency: ≥99.5%
  • Maximum Conversion Efficiency: 98.6%
  • Efficiency at Full Load: 97.8% - 98.0%
  • Temperature Coefficient: -3mV/°C/2V
  • Self-Consumption: 98mA/12V - 60mA/24V - 50mA/36V - 46mA/48V
  • Ground Connection: Common negative ground
  • Relay: Rated Value: 5A/30VDC; Maximum Value: 0.5A/60VDC
  • RS485 Interface: RJ45
  • LCD Backlight Time: Default: 60S, Range: 0-999S
  • Remote Meter (Model: MT50): Displays system operating information, error indications, self-diagnostics, LCD backlight, easy navigation, wall mounting, 2-meter cable, RJ45 interface

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
MPPT

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Specifications:

  • Product Type: MPPT Charge Controller with Sensor, Tracer6415AN
  • Supported Battery Types: Sealed, Gel, Flooded
  • Nominal System Voltage: 12V/24V/36V/48V
  • Maximum Open Circuit Voltage of PV: 150V/200V
  • Maximum Charging Current: 50A/60A/80A/100A
  • Nominal Charging Capacity: 625W/12V - 1250W/24V - 1875W/36V - 2500W/48V
  • Tracking Efficiency: ≥99.5%
  • Maximum Conversion Efficiency: 98.6%
  • Efficiency at Full Load: 97.8% - 98.0%
  • Temperature Coefficient: -3mV/°C/2V
  • Self-Consumption: 98mA/12V - 60mA/24V - 50mA/36V - 46mA/48V
  • Ground Connection: Common negative ground
  • Relay: Rated Value: 5A/30VDC; Maximum Value: 0.5A/60VDC
  • RS485 Interface: RJ45
  • LCD Backlight Time: Default: 60S, Range: 0-999S
  • Remote Meter (Model: MT50): Displays system operating information, error indications, self-diagnostics, LCD backlight, easy navigation, wall mounting, 2-meter cable, RJ45 interface

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
MPPT

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
