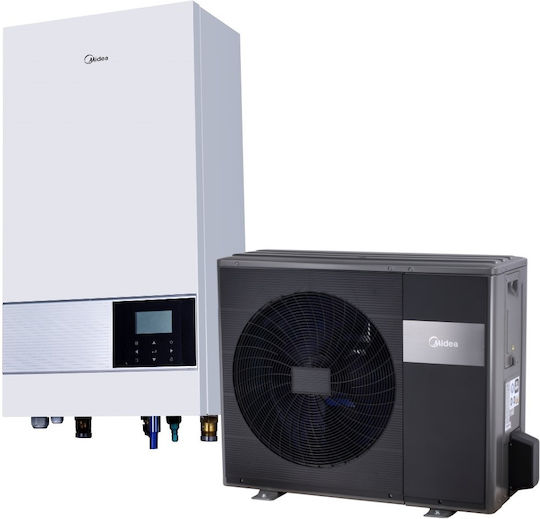

The Midea MHA-V12W/D2RN8-B2 heat pump offers a capacity of 12 kW, sufficient to meet heating and cooling needs for spaces up to 120 m². Thanks to air-to-water technology, it utilizes external air for indoor heating and, conversely, extracts heat from the indoor space to cool it, providing a pleasant climate throughout the year.

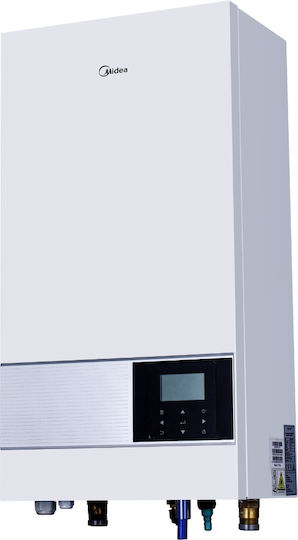

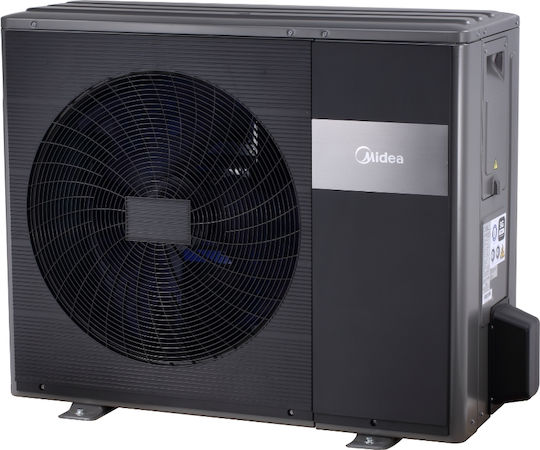

The three-phase supply is suitable for commercial spaces and homes with high energy consumption, while the maximum water temperature reaches 60°C, making it ideal for underfloor heating or fan coil systems. Additionally, the pump features a split system, allowing installation of indoor and outdoor units in different locations, providing flexibility and space optimization.
An optional feature is the addition of a hot water tank, which can supply hot water year-round. Electricity consumption is minimized, as heat pumps utilize approximately three times more ambient energy than the electricity they consume from the grid.
- Nominal Thermal Power (7°C - 35°C): 12kW
- Maximum Water Temperature: 60°C
- Technology: Air-to-Water
- System Type: Split
- Cooling: Available
- Product Number
- MHA-V12W/D2RN8-B2
Technical Specifications
- Rated Thermal Power (7ºC - 35ºC)
- 12 kW
- Maximum Water Temperature
- 60 °C
- Heating Type
- Air to Water
- System Type
- Split
- Cooling
- Yes
- Domestic Hot Water
- Optional Domestic Water Supply
- Power Source
- Three-Phase
- Type of Refrigerant Fluid
- R32
Energy Class
- Energy Class (35ºC)
- A
- Energy Class (55ºC)
- A
- COP (7ºC - 35ºC)
- 4.95
- EER (7ºC - 35ºC)
- 2.75
- Indoor Unit Noise Level
- 64 dB
- Outdoor Unit Noise Level
- 64 dB
Outdoor Dimensions
- Length
- 1118 mm
- Height
- 865 mm
- Length
- 523 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
