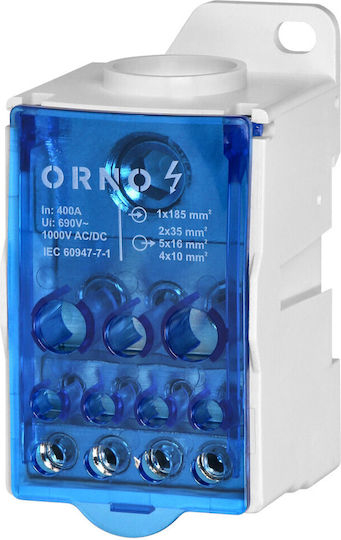

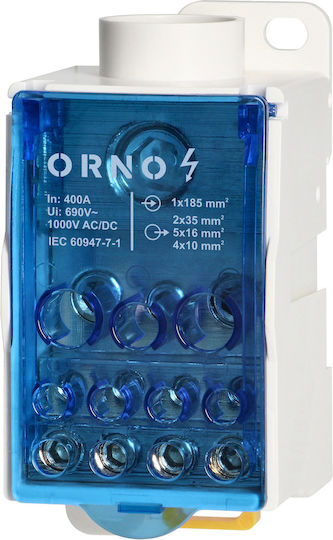

The Orno 400A distribution block is designed for the distribution of electrical energy and features:
- Input terminal: 1x185 mm²
- Output terminals: 4x10 mm², 5x16 mm², and 2x35 mm²
- Rated current: 400 A
- Operating voltage: up to 1000 V
- Protection degree: IP20
- Installation: on DIN rail or with screws
- Specifications:
- Brand: Orno
- Type: distribution block
- Number of units: 1
- Number of poles: 1
- Number of rows: 1
- Compliance certifications: CE
- Dimensions: 96 mm × 49 mm × 50 mm
- Connection type: screw clamp
- Inputs / outputs: 1 / 11
- For single-core, multi-core, and flexible cables: yes
- Insulated protective cover for contact safety: yes
