Sliding garage door automation kit with electronic control panel, 1 remote control, and 3 meters of metal rack with spacers.
- Product code: GR4-e4-ECO-KIT
- Maximum door leaf weight: 400 Kg
- Motor power: 190 Watt
- Mechanism type: Permanent lubrication with grease, Non-reversible
- Openings per hour: up to 15 for a door of indicative length 5 m at 20°C
- Operating voltage of motor: 230 VAC (single phase)
- Weight of motor: 8 Kg
- Operating temperature range: -25°C to +60°C
- Degree of protection against dust and moisture: IP-55
- Gear type: Z17 / m4 (17 teeth / module 4)

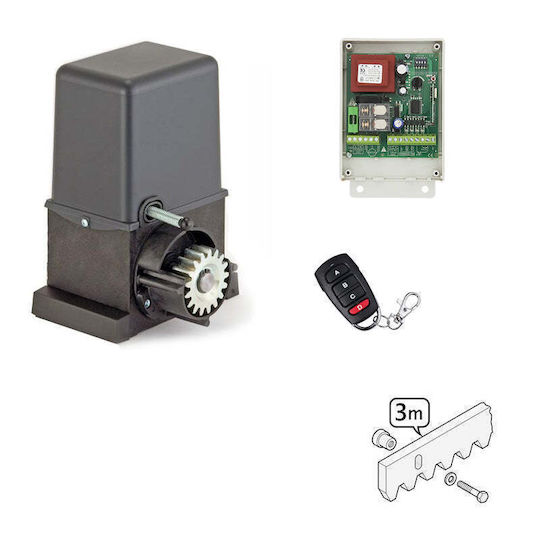

The GR4-e4-ECO-KIT sliding garage door set includes:
- 1 GR4 motor
- 2 disengagement keys
- 4 galvanized screws
- 4 galvanized washers
- 1 metal support base
- 2 metal plates (small plates - stops) for activating the limit switches
- 1 capacitor 8 μF
- 1 user manual
- 1 e4 remote control
- 1 R2010D control board
- 1 user manual in Greek
A separate package includes 3 meters of metal rack module 4 (toothed rule) with spacers and screws.
Specifications
- Motor type
- Sliding
- Maximum Weight
- 400 kg
- Maximum Door Length
- 3 m
- Built-in Control Panel
- No
Set Contents
- Motor
- 1 pcs
- Control Panel
- 1 pcs
- Security Beacon
- 1 pcs
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
