Italian mechanism set for sliding garage doors of intensive use. Suitable for heavy industrial-type doors up to 1600kg with high frequency usage requirements.

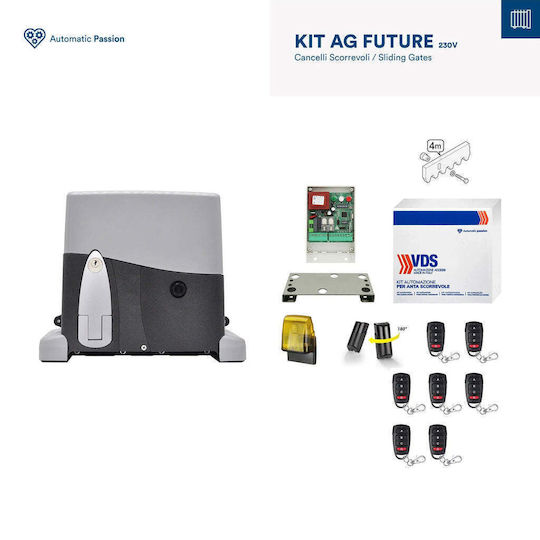

The KIT includes:
- Motor VDS AG-FUTURE-1600-OIL with a metal gear box in an oil bath.
- Built-in control panel Autotech 5070S with safety features.
- 4m galvanized metal rack with spacers.
- 7 remote controls.
- LED light with antenna.
- One set of wired safety photo cells with a 180-degree rotation capability.
- Mounting base, activation strips for limit switches, disengagement keys, installation instructions in Greek.
Technical Specifications:
- Product code: VDS-AG-FUTURE-1600
- Power supply voltage: 230 VAC
- Motor operating voltage: 230 VAC
- Power consumption of motor: 360 Watt
- Supply current intensity: 1.8 A
- Motor speed: 1400 rpm
- Maximum door weight: 1600 Kg
- Type of mechanism: Oil lubrication/cooling (oil-bath).
- Maximum usage frequency: S3-80% at 20°C.
- Thermal protection of motor winding: 140 °C.
- Degree of protection against dust and moisture: IP-44.
- Motor weight: 13 Kg.
Specifications
- Motor type
- Sliding
- Maximum Weight
- 1600 kg
- Maximum Door Length
- 4 m
- Built-in Control Panel
- Yes
Set Contents
- Motor
- 1 pcs
- Control Panel
- 1 pcs
- Remote Control
- 7 pcs
- Security Beacon
- 1 pcs
- External Antenna
- 1 pcs
