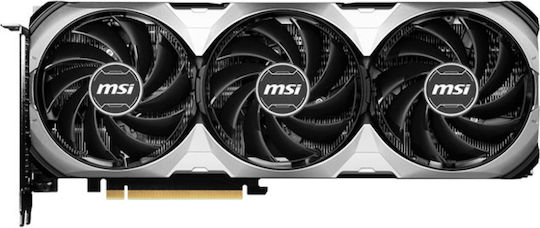

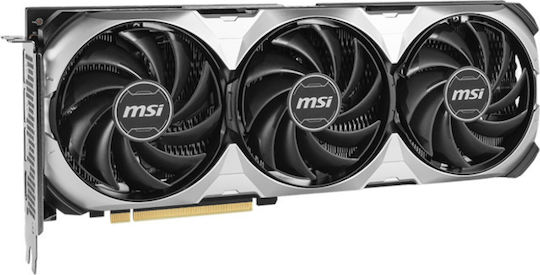

MSI GeForce RTX 4070 12GB GDDR6X Ventus 3X E1 12G OC Graphics Card
Graphics Cards

MSI GeForce RTX 4070 12GB GDDR6X Ventus 3X E1 12G OC Graphics Card

Key features:

  • 12GB GDDR6X Memory, 192bit
  • PCI Express x16 4.0
  • Maximum Resolution 7680x4320 pixels
  • Card Length 308 mm

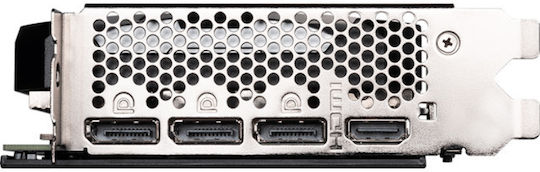

  • 1x HDMI 2.1a, 3x DisplayPort 1.4a
  • Minimum Power Supply 650 W
See full description

Top specs

  • Memory

    It refers to the type (e.g., GDDR6, GDDR6X) and size of the integrated memory (e.g., 4GB, 8GB, 12GB) of the graphics card. Greater capacity and newer memory types offer better performance in demanding games and applications.

  • OverClock (OC)

    Overclocking (OC) increases the frequencies of the core and the memory (VRAM) of the card for higher FPS and faster graphics processing. It is achieved by increasing the Power Limit and voltage, but requires strong cooling to prevent overheating.
  • Connectivity HDMI, DisplayPort

  • Cuda Cores

    CUDA Cores are processing units in NVIDIA graphics cards that allow the simultaneous execution of many computational tasks. They accelerate the process of graphics processing, as well as other demanding tasks such as machine learning and data processing.

  • Interface

    The version of the PCI Express connection used for installing the graphics card on the motherboard.

    The most widespread version is 4.0, while the latest generation cards use 5.0.

    PCI Express x16 4.0

  • Memory bus

    The size of the communication channel between the chipset and the RAM of the graphics card. In combination with the processor's base clock speed, it determines the volume of data (which translates into graphics resolution and quality) that can be directed to the graphics card processor.
  • See all
The product is not available at Skroutz Last updated: 11 months ago
Product report

Description

Description

The GeForce RTX 4070 Ventus 3X E1 12G OC from MSI is aimed at demanding users involved in high-quality gaming, virtual reality, video editing, and other applications that require fast graphics performance.

Attention to details:

  • Memory: 12GB GDDR6X
  • Memory Bus: 192bit
  • Processor Speed: 2505MHz
  • Communication Bus: PCI Express x16 4.0
  • Minimum Required Power Supply: 650 Watt
  • Outputs: 1x HDMI, 3x DisplayPort
  • Maximum Resolution: 7680x4320 pixels

Comparison of the new Ada Lovelace architecture with the previous generation

The NVIDIA Ada Lovelace architecture, which is at the heart of every GeForce RTX 40 Series graphics card, offers a massive generational leap in performance, efficiency, and capabilities.
Built with TSMC's special 4N process and featuring up to 76 billion transistors (compared to the 28 billion of the previous generation), Ada is the most advanced GPU architecture ever created. Ada is extremely efficient, with more than double the performance at the same power consumption compared to the previous generation's Ampere architecture and features excellent overclocking capability as power supply increases.

Ada Lovelace Architecture

  • New streaming multiprocessors, up to 2 times the performance and power efficiency.
  • Fourth-generation Tensor cores, up to 4 times the performance with DLSS 3 compared to brute-force rendering.
  • Third-generation RT cores, up to 2 times the ray tracing performance.

Ray Tracing

The NVIDIA Ada Lovelace architecture fully unleashes the capabilities of ray tracing technology, which simulates the behavior of light in the real world.

With the unique power of the new GeForce RTX 40 series and the 3rd generation RT cores featuring the new hardware units "Opacity Micromap Engine" and "Micro-mesh Engine," you will experience unparalleled gaming experiences.

Nvidia DLSS 3

The performance multiplier, powered by AI

DLSS is a revolutionary breakthrough in AI graphics that massively boosts performance. With the help of the new 4th generation Tensor cores and the optical flow accelerator in the GeForce RTX 40 Series, DLSS 3 analyzes successive frames and motion data from the new optical flow accelerator 40 to create additional high-quality frames.

DLSS Super Resolution

Increases performance for all GeForce RTX cards, using AI to generate higher resolution frames from lower resolution input.

DLSS collects samples of multiple lower resolution images and uses motion data and feedback from previous frames to reconstruct native quality images.

Nvidia Reflex

Nvidia Reflex and GeForce RTX 40 Series cards provide the lowest latency and the best responsiveness for the ultimate competitive advantage.

Designed to optimize and measure system latency, Reflex offers faster target acquisition, quicker reaction times, and the best aiming precision for competitive games.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Processor Manufacturer
Nvidia

Processor Manufacturer

Nvidia

nVIDIA chipset cards are characterized by high performance and 4K gaming, where they currently outperform AMD. In the mid-range category, we encounter reliable cards with similar performance from both manufacturers.
Chipset Model
GeForce RTX 4070

Chipset Model

The main graphics processing chip of the card. It is the most basic characteristic and indicative of its performance.
Interface
PCI Express x16 4.0

Interface

The version of the PCI Express connection used for installing the graphics card on the motherboard.

The most widespread version is 4.0, while the latest generation cards use 5.0.

PCI Express x16 4.0
Processor Speed (Base Clock)
2505 MHz

Processor Speed (Base Clock)

It is the base operating frequency of the graphics card, without activating the boost function. This speed determines how many processing operations the graphics card can perform per second under normal conditions.
Maximum Resolution
7680x4320 pixels
Parallel Processing Technology
Not Supported

Parallel Processing Technology

Ability to use multiple graphics cards simultaneously on a computer. Support for the corresponding technology is required from the motherboard.

This is intended for experienced users with a need for particularly high performance.
Type
High Performance

Type

High Performance

Cards that can smoothly run the most modern games at high resolutions up to 8K.
Cuda Cores
5888

Cuda Cores

CUDA Cores are processing units in NVIDIA graphics cards that allow the simultaneous execution of many computational tasks. They accelerate the process of graphics processing, as well as other demanding tasks such as machine learning and data processing.
Device Group
Gaming
Colour
Black

Special Features

RGB Lighting
No

RGB Lighting

It features built-in multicolored LED lighting.
OverClock (OC)
Yes

OverClock (OC)

Overclocking (OC) increases the frequencies of the core and the memory (VRAM) of the card for higher FPS and faster graphics processing. It is achieved by increasing the Power Limit and voltage, but requires strong cooling to prevent overheating.
Air-cooled
Yes

Air-cooled

The graphics card is cooled by one or more fans. 2. The most common way of cooling.
Low Profile
No

Low Profile

Small-sized graphics cards.

They are commonly used in computers with small cases.
Passive Cooling
No

Passive Cooling

The graphics card cools passively, without the use of fans. They are used in cards that are not as powerful, for building a silent computer or HTPC.
Water-cooled
No

Water-cooled

Graphics cards with a waiting connection to a liquid cooling system. They cannot operate without it. Usually found in powerful graphics cards aimed at experienced and demanding users.
External Graphics Card (eGPU)
No

External Graphics Card (eGPU)

A graphics card that has its own box with its own power supply and cooling.

Usually intended for use with laptops, offering the highest performance of a desktop graphics card.
LHR
No

LHR

The LHR (Lite Hash Rate) technology was introduced by NVIDIA to limit the performance of graphics cards in cryptocurrency mining. The goal was to make the cards less attractive to miners, in order to increase availability and reduce prices for gamers. It is important to note that this limitation only affects mining and does not impact the card’s performance in games or graphic applications at all.

Memory

Memory Capacity
12 GB

Memory Capacity

The amount of RAM memory that the graphics card has. Important for demanding games and applications at high resolutions. It is recommended that the card has 4GB or more for gaming.
Memory type
GDDR6X

Memory type

RAM memory standards for graphics cards. Most modern cards have GDDR5 or GDDR6.
Memory Speed
12 Gbps
Memory bus
192 bit

Memory bus

The size of the communication channel between the chipset and the RAM of the graphics card. In combination with the processor's base clock speed, it determines the volume of data (which translates into graphics resolution and quality) that can be directed to the graphics card processor.

Connectivity

HDMI
1

HDMI

A modern way of digitally transmitting image and sound, compatible with DisplayPort and DVI through an adapter.
DisplayPort
3

DisplayPort

Modern way of digital transfer of image, sound and data, compatible with HDMI and DVI through an adapter.
Dual Link DVI
No

Dual Link DVI

The Dual version supports higher resolutions compared to the simple one. DVI is an older digital method of image transfer, partially compatible with HDMI cables through an adapter.

System Requirements

Minimum Power Supply
650 W

Minimum Power Supply

The minimum power supply required for proper operation of the graphics card in a computer. Mainly applies to modern and powerful graphics cards with particularly high demands. Most power supplies now are over 500W, covering the needs of an average graphics card. In any case, we must confirm that our power supply meets the requirements of the graphics card.
Power Connectors
8-pin

Power Connectors

The type of additional power supply that the card needs directly from the power supply.

Dimensions

Length
308 mm
Height
120 mm
Thickness
43 mm

Top Specs

Memory
12GB, GDDR6X

Memory

It refers to the type (e.g., GDDR6, GDDR6X) and size of the integrated memory (e.g., 4GB, 8GB, 12GB) of the graphics card. Greater capacity and newer memory types offer better performance in demanding games and applications.
Connectivity
HDMI, DisplayPort

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
Questions (1)

Questions

20 users have this product and can help you

Ask for the product
Dimitris_Ant7348

Κανονικά αυτή η υλοποίηση δεν είναι gddr6 και όχι gddr6x ? Ναι το γράφει πως είναι αλλά η MSI GeForce RTX 4070 12GB GDDR6X Ventus 3X E 12G OC (δλδ χωρίς το 1 στο Ε1 ) είναι η gddr6x στην ιστοσελίδα της msi . Ρωτάω γιατί σκέφτομαι να την αγοράσω .
