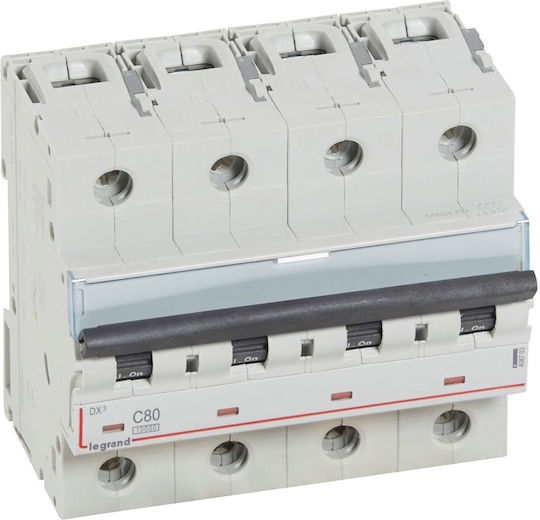

LEGRAND DX³ 4P 80A Automatic three-phase circuit breaker 10kA 400V Type C with neutral interruption (N).

• Installation depth: 47 mm
• Activation characteristic: C
• Number of poles: 4
• Number of protected poles: 4
• Rating/nominating current (In): 80A
• Nominal voltage (Ue): 400V
• Nominal insulation voltage (Ui): 500V
• Nominal withstand impulse voltage (Uimp): 6 kV
• Nominal breaking capacity according to EN 60898 at 230 V (Icn): 10 kA
• Type of voltage: AC
• Nominal breaking capacity according to EN 60898 at 400 V (Icn): 10 kA
• Nominal breaking capacity according to IEC 60947-2 at 230 V (Icu): 32 kA
• Nominal breaking capacity according to IEC 60947-2 at 400 V (Icu): 16 kA
• Frequency: 50-60Hz
• Recessed mounting: Yes
• Neutral pole trips simultaneously: Yes
• Pollution degree: 3
• Combined auxiliary products: Yes
• Width in number of modules: 6
• Protection category (IP): IP20
• Ambient temperature during operation: -25-70°C
• Flexible cable connection section: 6-50 mm²
• Rigid cable connection section: 6-70 mm²
• Explosion-proof: No
• Width: 106.8 mm
• Height: 103 mm
• Depth: 79.2 mm
• Impact resistance (IK): IK02
• Storage temperature: -40-70°C
• Supply direction: From above or below
• Color: Gray
• RAL number: 7035
• Halogen-free: Yes
• Connection type: Screw terminal
• With text area/sign area: Yes
• Installation method: DIN rail
