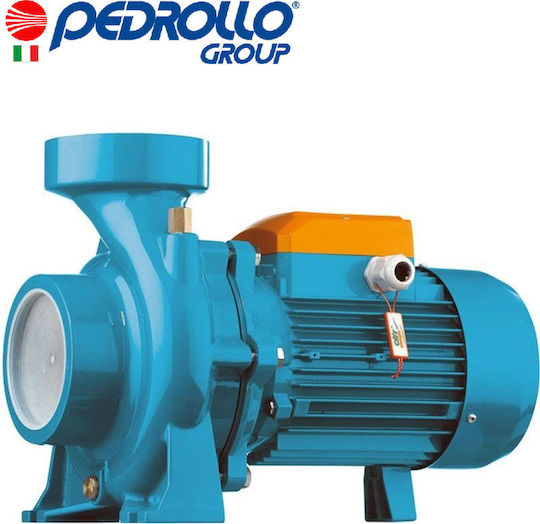

CITY PUMPS is the Premium series of PEDROLLO, a member of the PEDROLLO GROUP.
Technical Characteristics:
- Pump Type: High Flow Centrifugal
- Motor Power (Hp): 5.5
- Voltage (Volt): 380 Volt/50 Hz
- Inlet Diameter Φ (Inch-mm): 4" - 100mm
- Outlet Diameter Φ (Inch-mm): 4" - 100mm
- Max Head (M): 24.5
- Max Flow Rate (m3/h): 72
- Body Material: Cast Iron
- Impeller Material: Bronze
- Fluid Temperature (°C): 90
- Ambient Temperature (°C): 40
- Suction Lift (M): 7
- Net Weight (Kg): 37.1
- Product Number
- 47HF83T0AAI
Main Specifications
- Power Source
- Electric
- Automatic Suction
- No
- Centrifugal
- Yes
- Firefighting
- No
- Power Type
- Three-Phase
- Set
- No
Technical Specifications
- Horsepower
- 5.5 hp
- Manometric Head
- 40 m
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
