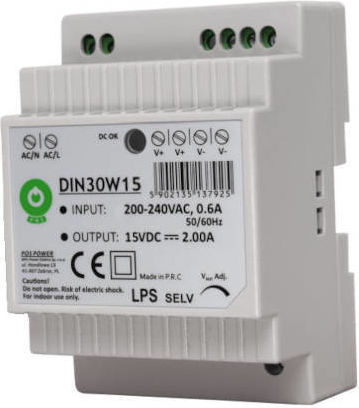

DIN30W15 - 15V 30W Power Supply for DIN Rail
The DIN30W15 is a high-quality power supply designed for DIN rail mounting. It provides a stable output of 15V and a power of 30W, ideal for applications in industrial automation, telecommunications, and powering control systems.
Technical Specifications
- Output Voltage: 15V DC
- Rated Current: 2A
- Rated Power: 30W
- Input Range: 180 – 264V AC
- Input Frequency: 47 – 63Hz
- Efficiency: 85%
- Operating Temperature Range: -20°C to +50°C
- Dimensions: 62.5 x 93 x 56 mm
- Weight: 0.21 kg
Applications
- Industrial Automation
- Telecommunications
- Control Systems
- Consumer Electronics
Advantages
- Easy installation on DIN rail
- Built-in protections: overload, short circuit, overvoltage, and thermal
- Energy efficiency at low load
- Passive cooling - no need for a fan
Compatible Replacement Models
- Mean Well HDR-30-15
- PULS MiniLine ML30.151
- Delta Electronics DRP015V030W1AA
- Output Voltage
- 15 V
- Power
- 30 W
- Power Intensity
- 2 A
- UPS
- No
