Features

• Designed for receiving digital terrestrial TV signals DVB-T/T2
• Equipped with a built-in filter for the 470-694 MHz band
• Operates as passive or active
• Has very high gain and an integrated ultra-low noise amplifier
• Aesthetic and durable construction

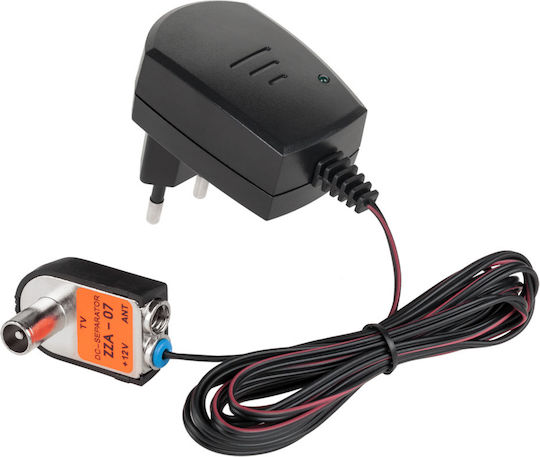

• Powered by DC voltage 5…24V (includes 12V power supply with separator ZZA-7)

Technical Data

• Frequency range: 470-694 MHz
• Maximum gain: 14 dBi
• Maximum preamplifier gain: 22 dB
• Out-of-band rejection: >20/703-800 dB@MHz; >25/801-1000 dB@MHz; >35/1001-2600 dB@MHz
• Polarization: Horizontal (H)
• 3 dB beam angle (horizontal plane): 40°
• Front-to-back ratio: 24 dB
• Noise figure: =
• Maximum TV signal level at output (DIN): 102 dBµV
• Power supply / current consumption: 12-24 V DC / 50 mA; 5 V DC / 40 mA
• Maximum mast diameter: 25-60 mm
• Maximum wind load: 120 N
• Commercial impedance: 75 Ohm
• Output connector type: F socket

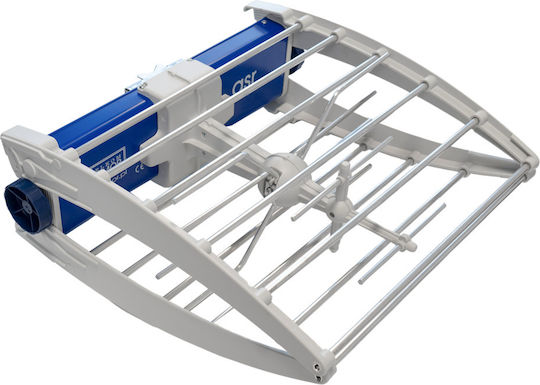

• Dimensions of the antenna in folded state: 820 x 455 x 220 mm
• Net weight: 2.48 kg
• Packaging: cardboard
• Standard equipment: F connector with screw, power supply with separator ZZA-7
