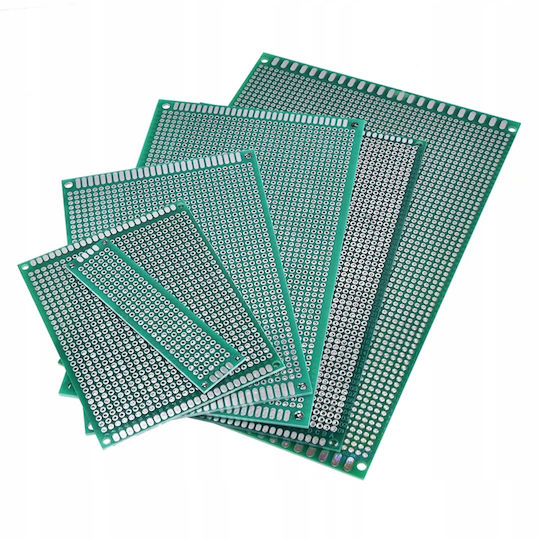

The double-sided universal prototype PCB ROSFIX is designed for building electronic circuits using through-hole components (THT), such as resistors, capacitors, LEDs, and DIP ICs. This versatile board allows for assembling any electronic circuit thanks to the holes arranged in a rectangular grid with a 2.54 mm pitch. It is suitable for hobbyists and professionals who want to create custom electronic projects.

Product features:

• Double-sided PCB for flexible circuit design
• Compatible with through-hole components (THT)
• Hole pitch of 2.54 mm for easy component placement
• Elliptical edges on the short sides for convenient cable soldering
• No preset traces for flexible connection planning
• Four mounting holes for secure installation in enclosures

Technical specifications:

• Dimensions: 50 x 70 mm
• Solder mask color: Green
• Mounting type: Through-hole (THT)
• Hole pitch: 2.54 mm
• Mounting holes: 4, symmetrically placed at the corners

Package contents:

• 1× Double-sided universal prototype PCB (50 x 70 mm)
• 1× User manual (if necessary)
• Additional components are not included
