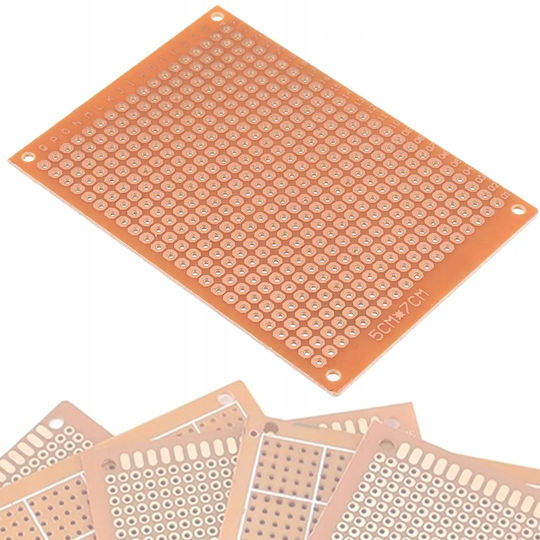

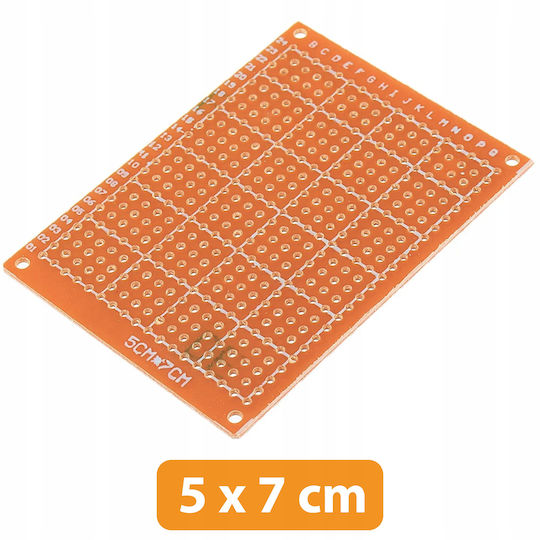

The ROSFIX single-sided universal prototype PCB board measuring 50 x 70 mm is designed for building electronic circuits using surface-mount components (THT), such as resistors, capacitors, LEDs, and DIP ICs. This versatile board allows the assembly of any electronic configuration because of its holes with 2.54 mm spacing arranged in a rectangular grid.

Product Features

• Single-sided design for easy component placement and soldering
• Two rows of oval-shaped pads on the short sides for easy cable attachment
• Unconnected metal holes for flexible circuit design
• Four mounting holes for secure installation in enclosures
• Compatible with various THT components for prototyping applications
• Ideal for creating permanent electronic circuits through soldering

Technical Data

• Dimensions: 50 x 70 mm
• Mounting type: Surface Mount (THT)
• Hole size: 2.54 mm
• Number of mounting holes: 4, symmetrically placed at the corners
• Surface type: Oval-shaped pads for wire connections
• Material: Standard PCB material suitable for electronic applications

Package Contents

• 1× ROSFIX single-sided universal prototype PCB 50 x 70 mm
• 1× User manual (if available)
• Additional components not included (e.g., resistors, capacitors, etc.)

This PCB is ideal for both hobbyists and professionals who want to create reliable electronic prototypes with ease.
