Hikvision Ds-7716nxi-k4/16p D Ip Recorder
Surveillance Video Recorders

Hikvision Ds-7716nxi-k4/16p D Ip Recorder

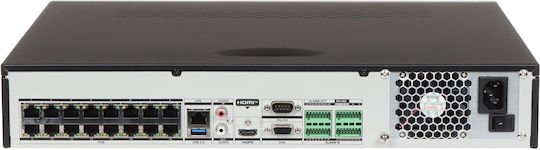

HIKVISION DS-7716NXI-K4/16P(D) IP RECORDER

  • Maximum supported resolution: 12 MP (4K)
  • Number of supported disks: 4 pieces
  • HDMI port: Yes
  • D-Sub/VGA port: Yes
  • Onvif: Yes
  • Network: RJ45 (10/100/1000Mbps)
  • ...

HIKVISION DS-7716NXI-K4/16P(D) IP RECORDER

  • Maximum supported resolution: 12 MP (4K)
  • Number of supported disks: 4 pieces
  • HDMI port: Yes
  • D-Sub/VGA port: Yes
  • Onvif: Yes
  • Network: RJ45 (10/100/1000Mbps)
  • Number of supported cameras: 16 pieces
  • USB: 2 USB 2.0 (front), 1 USB 3.0 (rear)
  • PoE switch: 16 PoE interfaces
  • Maximum supported hard disk capacity: 64 TB
See full description See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    160

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    PoE

    These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all
845 25 €
846 Coins 846 Coins
Delivery Mon, 05 Oct - Wed, 07 Oct
Free   shipping cost
Sent from Romania
From Great Giorgio Logistic 5.0 (5)
5.0 (5 reviews)
Romania
18 pieces
See CCTV Systems on the page of Great Giorgio Logistic
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

HIKVISION DS-7716NXI-K4/16P(D) IP RECORDER

  • Maximum supported resolution: 12 MP (4K)
  • Number of supported disks: 4 pieces
  • HDMI port: Yes
  • D-Sub/VGA port: Yes
  • Onvif: Yes
  • Network: RJ45 (10/100/1000Mbps)
  • Number of supported cameras: 16 pieces
  • USB: 2 × USB 2.0 (front), 1 × USB 3.0 (rear)
  • PoE switch: 16 PoE interfaces
  • Maximum supported hard disk capacity: 64 TB

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
16

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
16

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Incoming Bandwidth
160 Mbps

Incoming Bandwidth: 160

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, PoE

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

Maximum Capacity per Disk
64 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

HIKVISION DS-7716NXI-K4/16P(D) IP RECORDER

  • Maximum supported resolution: 12 MP (4K)
  • Number of supported disks: 4 pieces
  • HDMI port: Yes
  • D-Sub/VGA port: Yes
  • Onvif: Yes
  • Network: RJ45 (10/100/1000Mbps)
  • Number of supported cameras: 16 pieces
  • USB: 2 × USB 2.0 (front), 1 × USB 3.0 (rear)
  • PoE switch: 16 PoE interfaces
  • Maximum supported hard disk capacity: 64 TB

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
16

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
16

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Incoming Bandwidth
160 Mbps

Incoming Bandwidth: 160

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, PoE

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

Maximum Capacity per Disk
64 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
