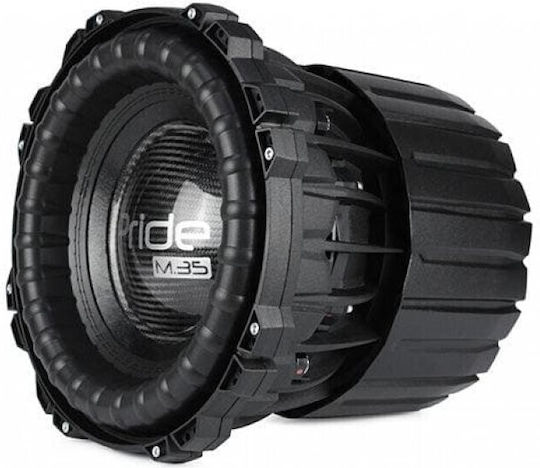

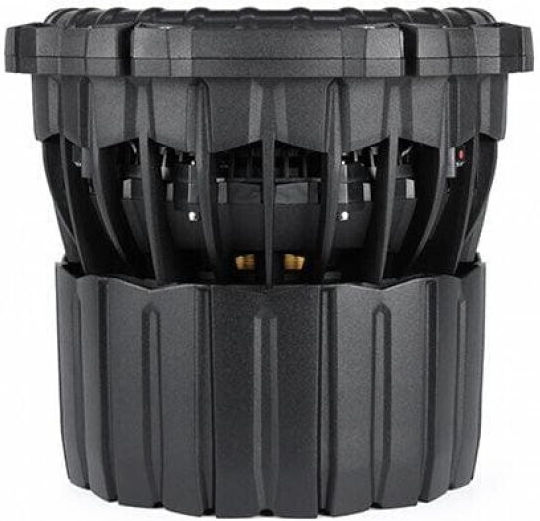

PRIDE M35.12 D0.75 Subwoofer Αυτοκινήτου 12" 3500WRMS

Χαρακτηριστικά:

• Power Handling (RMS): 3500 W
• VC diameter / material: 3,6" Flat aluminum
• VC wire insulation: Polyimide
• Frame material: Aluminum
• Magnet size and q-ty: 240*26mm x 3 pcs
• Spider diameter and q-ty: 250mm x 6pcs
• Cone material: Paper reinforced glass fiber
• Dust cap material: Carbon (real)

Parameters (D0.75):

• DC Resistance (Re): 0,75+0,75 Ω
• Free Air Resonance (Fs) Hz: 29,3
• Moving Mass (Mms) g: 332
• BL Tm: 18
• Total Speaker “Q” (Qts): 0,242
• Electrical Q (Qes): 0,256
• Mechanical Q (Qms): 3,23
• Equivalent Compliance (Vas) L: 36,7
• One-Way Linear Excursion (Xmax) (BL 50%) mm: 35
• Sensitivity (1 W / 1 m) dB: 87,4
• Sensitivity (2,83 V / 1 m) dB: 92,2
• Effective Piston Area (Sd) cm²: 530

Physical Specifications:

• Overall Diameter: 325mm
• Mounting Hole Diameter: 307,5mm
• Mounting Depth: 260mm
• Driver Displacement: 6 l
• Net Weight: 37,5 kg
