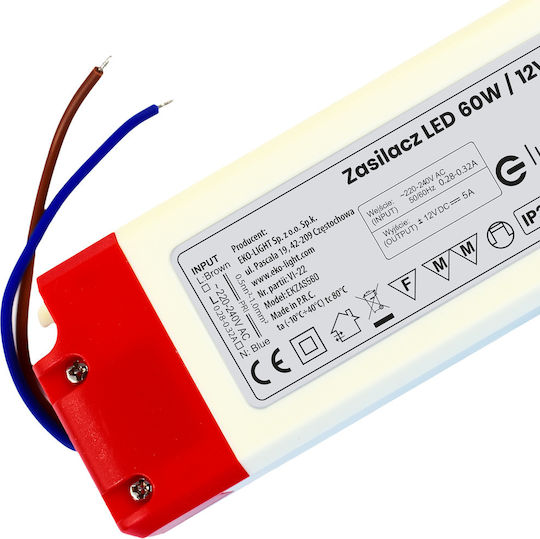

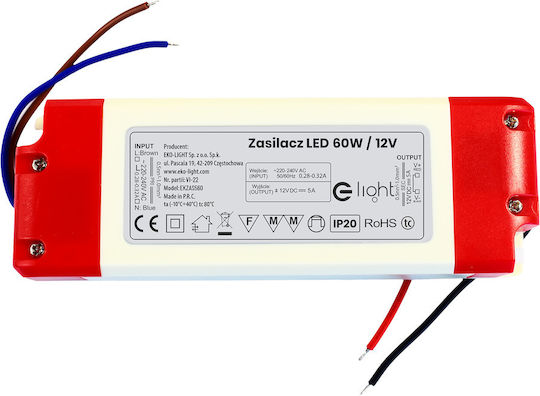

Indoor Power Supply from EKO-LIGHT, model EKZAS560, with an output power of 60W, housed in a plastic case with a minimalist design that allows for proper cooling and protection against electric shock. The power supply has an IP20 protection rating. It is designed to power LED strips, modules, panels, bars, LED bulbs, and many other electronic devices with a voltage of 12V DC.

• Main product features:
• The modular power supplies are intended for use in LED home lighting installations.
• Maximum power up to 60W.
• Output voltage 12V DC.
• The modular design allows for easy and convenient installation on horizontal and vertical surfaces indoors.
• Installation: Simply connect the protruding wires according to the user manual, one side to the LED source and the other to the power supply. The use of electrical connectors for wire connections is recommended, and installation should be carried out by a qualified electrician.
• Built-in protections ensure uninterrupted operation of all connected LED elements.
• Voltage stabilizer.
• Input voltage 100-240V AC.
• Wide application (anything requiring a 12V DC supply).

Technical specifications:

• Maximum power: 60W
• Output voltage: 12V
• Output current: 5A
• Protection rating: IP20
• Application: indoor
• Type: standard
• Dimensions: 155 x 55 x 32 mm

Example of LED strip connection capabilities – the power supply has a capacity of 60W; for powering an LED strip, it is recommended to connect a module whose power does not exceed 50W, such as a 5m LED strip with a power of 10W per meter.
