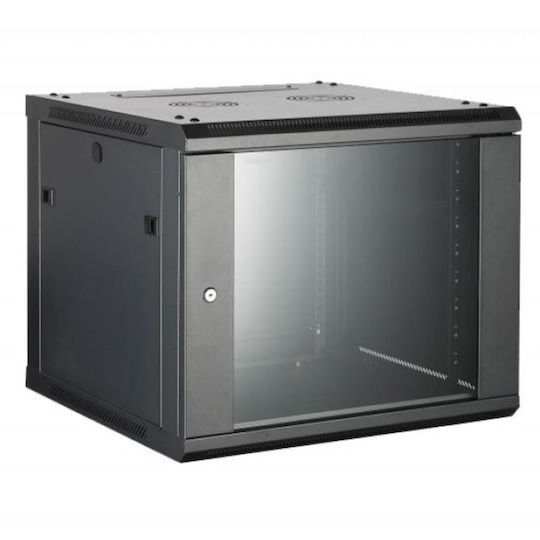

NG Wall-Mounted Rack Cabinet 15U Unassembled 600x600x770mm RACK-33115. The rack cabinet is the ideal configured space to place and protect the telecommunications/electronic equipment of a network (server, pc, UPS, hub, router, modem).
Features:
- Material: SPCC
- Color: RAL9005
- Protection category: IP20 to IEC60 529
- Size: 15U
- Maximum Static Load: 40KGS
- Finish Electrostatic: powder paint
- Compliance: CE, RoHS Certified
- Size: 600*600*770mm
- Thickness:
- Top panel & base panel & frame & front door & side panels: 1.0mm
- Vertical rail: 1.5mm
- Rear panel: 0.8mm
- N.W.: 29.7KGS
- G.W.: 31.2KGS
- Packing Size Disassembled: 785*615*255mm
- Standard Comply with ANSI/EIA-ECA-310-E; DIN41491:PART1.IEC297-2; DIN41494:PART7; GB/T3047.2-92 standard; compatible with ETSI standard
Package contents:
- Front door and rear panel
- Side panel
- Vertical rail
- Top cover
- Bottom panel
- Enclosure frame (horizontal beam and door frame)
- Mounting bracket
- L-shaped bracket
The photos are indicative and may differ from the final product.
Main Specifications
- Placing
- Wall Mounted
- Rack Unit
- 15U
- Colour
- -
- Weight
- -
Dimensions
- Width (cm)
- 60 cm
- Depth (cm)
- 60 cm
- Height (cm)
- 77 cm
