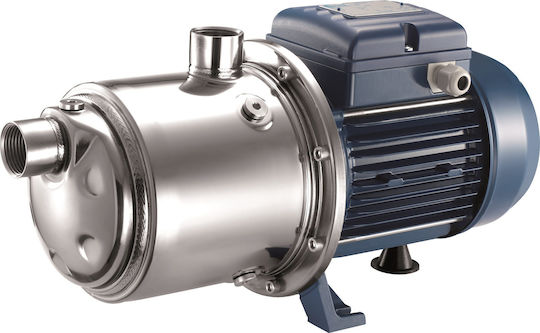

Pentax Electric Surface Water Pump 2hp
Surface Water Pumps

Pentax Electric Surface Water Pump 2hp Code: 113130106A

Electric Surface Pumps

Multistage, horizontal surface pump made of stainless steel, suitable for pumping clean water with high pressure. It is used in irrigation systems, water treatment, heating and...

Electric Surface Pumps

Multistage, horizontal surface pump made of stainless steel, suitable for pumping clean water with high pressure. It is used in irrigation systems, water treatment, heating and air conditioning, as well as in washing and drinking water systems.

TECHNICAL SPECIFICATIONS

  • Body: stainless steel AISI 304
  • Motor bracket: aluminum
  • Impeller:...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
The product is not available at Skroutz Last updated: about 1 month ago
Review the product
Product report

Description

Description

Electric Surface Pumps

Multistage, horizontal surface pump made of stainless steel, suitable for pumping clean water with high pressure. It is used in irrigation systems, water treatment, heating and air conditioning, as well as in washing and drinking water systems.

TECHNICAL SPECIFICATIONS

  • Body: stainless steel AISI 304
  • Motor bracket: aluminum
  • Impeller: Noryl®
  • Seal: ceramic-graphite ≤ 6 impellers, graphite-silicon carbide ≥ 7 impellers
  • Motor shaft: stainless steel AISI 303
  • Liquid temperature: -5 ÷ +35°C
  • Operating pressure: max 8.5 bar
  • Bipolar motor with thermal protection
  • Insulation class F
  • Protection degree IPX4
  • Voltage: 3x400 V - Power: 2.0 hp - Current: 3.6 A - Outlet: 1"x1"
  • Weight: 15.0 kg

FLOW Q C/W (m 3 /h-l/min)

  • 0, 1.8, 2.4, 3.6, 4.8, 6, 7.2, 8.4
  • 0, 30, 40, 60, 80, 100, 120, 140

MANOMETRIC HEIGHT H (m)

  • 80.6, 77.1, 75.1, 69.6, 61.3, 50.4, 35.8, -

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
113130106A

Main Specifications

Type
Multistage

Type

Multistage
Pumps with 3 or more blades exert high pressure and achieve maximum efficiency. Ideal for homes with low water pressure.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Set
No

Technical Specifications

Horsepower
2 hp
Pressure
8.5 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
