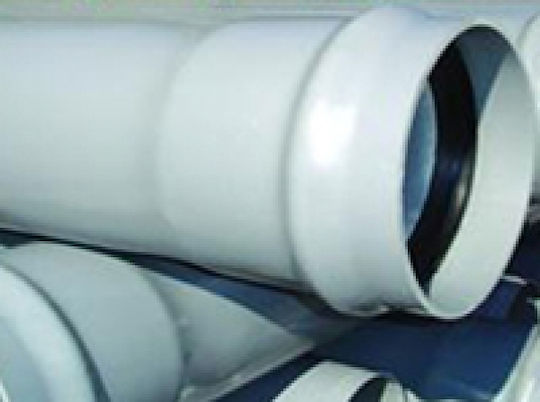

Plastic pipe for underground water supply and irrigation networks.
It is manufactured in a straight length of 6 (six) meters with an integrated socket connection (sealed with an elastomeric ring) in nominal diameters from 50 to 500mm, according to European specifications ELOT-EN.
- Dimensions:
- External Diameter 50mm: Wall thickness 3.7mm, Internal Diameter 42.6mm, Weight 0.809kg/m
- External Diameter 63mm: Wall thickness 4.7mm, Internal Diameter 53.6mm, Weight 1.29kg/m
- External Diameter 75mm: Wall thickness 5.6mm, Internal Diameter 63.8mm, Weight 1.82kg/m
- External Diameter 90mm: Wall thickness 6.7mm, Internal Diameter 76.6mm, Weight 2.61kg/m
- External Diameter 110mm: Wall thickness 8.2mm, Internal Diameter 93.6mm, Weight 3.9kg/m
- External Diameter 125mm: Wall thickness 9.3mm, Internal Diameter 106.4mm, Weight 5.01kg/m
- External Diameter 140mm: Wall thickness 10.4mm, Internal Diameter 119.2mm, Weight 6.27kg/m
- External Diameter 160mm: Wall thickness 11.9mm, Internal Diameter 136.2mm, Weight 8.17kg/m
- External Diameter 200mm: Wall thickness 14.9mm, Internal Diameter 170.2mm, Weight 12.8kg/m
- External Diameter 225mm: Wall thickness 16.7mm, Internal Diameter 191.6mm, Weight 16.1kg/m
- External Diameter 250mm: Wall thickness 18.6mm, Internal Diameter 212.8mm, Weight 19.9kg/m
- External Diameter 280mm: Wall thickness 20.8mm, Internal Diameter 238.4mm, Weight 24.9kg/m
- External Diameter 315mm: Wall thickness 23.4mm, Internal Diameter 268.2mm, Weight 31.5kg/m
The pipes are made from rigid PVC 100.
- Diameter
- Φ280
- Pieces
- 1 pcs
- Length
- 6 m
