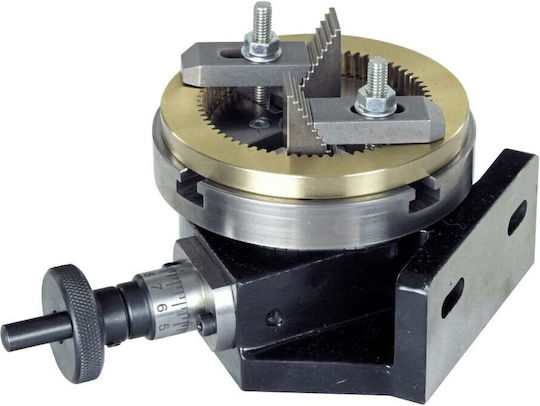

The UT 250 universal dividing head is a universal dividing system designed for the safe support of accessories on adjustable tables, such as the KT 150, as well as on milling machines FF 230 and FF 500/BL. It is suitable for divisions up to 360° with very easy adjustment via a graduated wheel, where 1 rotation equals 10° and the scale can be reset to zero.

The dividing head can be mounted both horizontally and vertically. The mounting holes are designed to fit tables with T-slot distances between 45 – 60mm. The flange for securing the support elements is identical to that of the PD 250/E lathe, allowing the use of its accessories if you already own the Proxxon PD 250/E lathe. If you do not already have this lathe, you can purchase the three-jaw chuck (23 034) or the four-jaw chuck (24 036) separately, both of which are compatible with the Proxxon PD 250/E and the universal dividing head UT 250.

The package includes a Ø100mm steel support plate and the corresponding clamps for securing it (including fastening accessories, screws, and nuts). The set is delivered in a wooden case with a sliding lid.

Fields of use:

• Precise machining of circular parts
• Manufacture of gears, clutches, locking mechanisms, cams, gears, etc.
• Precise mounting on the Proxxon KT 150 coordinate table and on the Proxxon FF 230 and FF 500/BL milling machines
